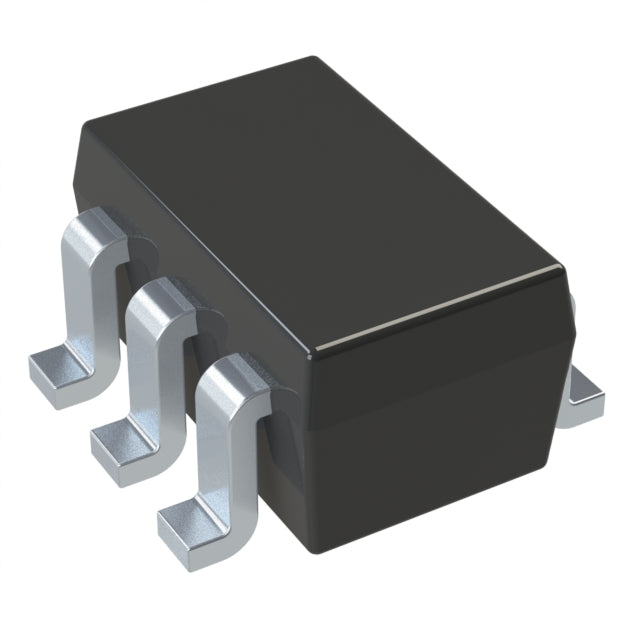

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Diodes Incorporated
74LVC1G3157DW-7
74LVC1G3157DW-7
Regular price
Dhs. 1.20
Regular price
Dhs. 1.27
Sale price
Dhs. 1.20
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 1.20 AED | Dhs. 1.20 AED |
| 15+ | Dhs. 1.17 AED | Dhs. 17.55 AED |
| 25+ | Dhs. 1.14 AED | Dhs. 28.50 AED |
| 50+ | Dhs. 1.08 AED | Dhs. 54.00 AED |
| 100+ | Dhs. 0.95 AED | Dhs. 95.00 AED |
| N+ | Dhs. 0.19 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Diodes Incorporated |
| Product Series | 74LVC |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | 250mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 4ns, 7.5ns |
| -3db Bandwidth | 300MHz |
| Charge Injection | 7pC |
| Channel Capacitance (CS(off), CD(off)) | 6pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -42dB @ 10MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
| ROHS |  |
Datasheets:
74LVC1G3157DW-7
.pdf
×
