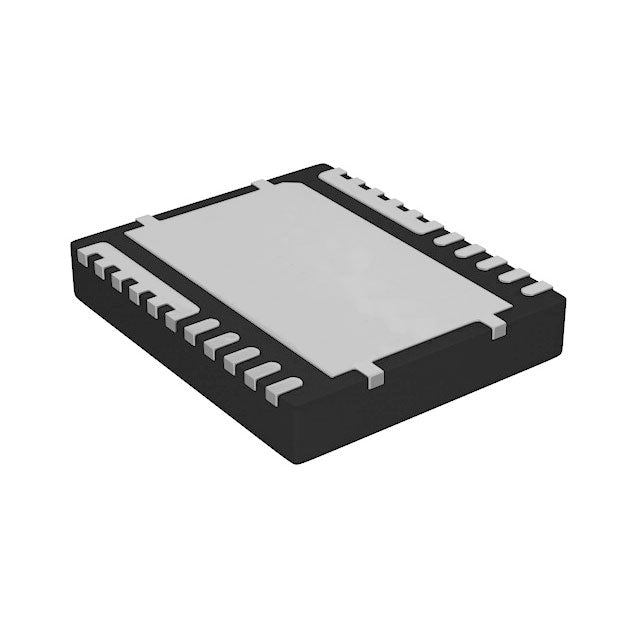

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Texas Instruments
CSD95472Q5MCT
Integrated Circuits & Chips
Texas Instruments
IC HBD SYNC BUCK 60A 12VSON
CSD95472Q5MCT
Regular price
$5.53
(Volume discounts available! Contact our customer support for customized pricing on bulk orders.Pro Tip: 🇺🇸 Switch your region to United States for localized offers.)
(Volume discounts available! Contact our customer support for customized pricing on bulk orders.Pro Tip: 🇺🇸 Switch your region to United States for localized offers.)
Regular price
$5.82
Sale price
Unit price
per
| quantity | unit price | total price |
| 1 | $5.53 | $5.53 |
| 15+ | $5.35 USD | $80.32 USD |
| 25+ | $5.24 USD | $130.95 USD |
| 50+ | $4.95 USD | $247.35 USD |
| 100+ | $4.37 USD | $436.50 USD |
| N+ | $2.91 USD | Price Inquiry |
Shipping calculated at checkout.
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | NexFET™ |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | - |
| Applications | Synchronous Buck Converters |
| Interface | PWM |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | - |
| Current - Output / Channel | 60A |
| Current - Peak Output | 90A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 4.5V ~ 16V |
| Features | Bootstrap Circuit, Diode Emulation, Status Flag |
| Fault Protection | Current Limiting, Over Temperature |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-PowerTFDFN |
| Supplier Device Package | 12-VSON (5x6) |
Datasheets:
CSD95472Q5MCT
.pdf
×
