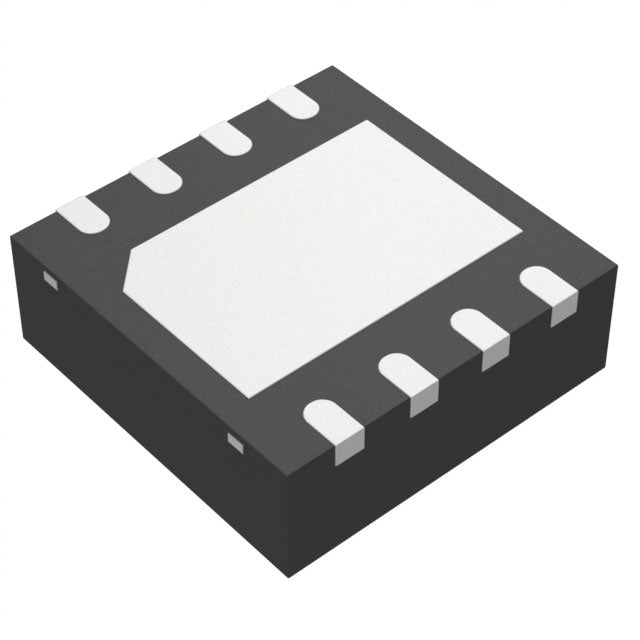

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Texas Instruments
CSD97396Q4M
CSD97396Q4M
Regular price
Dhs. 7.45
Regular price
Dhs. 7.83
Sale price
Dhs. 7.45
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 7.45 AED | Dhs. 7.45 AED |
| 15+ | Dhs. 7.20 AED | Dhs. 108.00 AED |
| 25+ | Dhs. 7.05 AED | Dhs. 176.25 AED |
| 50+ | Dhs. 6.66 AED | Dhs. 333.00 AED |
| 100+ | Dhs. 5.87 AED | Dhs. 587.00 AED |
| N+ | Dhs. 1.17 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | NexFET™ |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Half Bridge |
| Applications | Synchronous Buck Converters |
| Interface | PWM |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | - |
| Current - Output / Channel | 30A |
| Current - Peak Output | 65A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 4.5V ~ 24V |
| Features | Bootstrap Circuit, Diode Emulation |
| Fault Protection | Shoot-Through |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerVFDFN |
| Supplier Device Package | 8-VSON (3.5x4.5) |
| ROHS |  |
Datasheets:
CSD97396Q4M
.pdf
×
