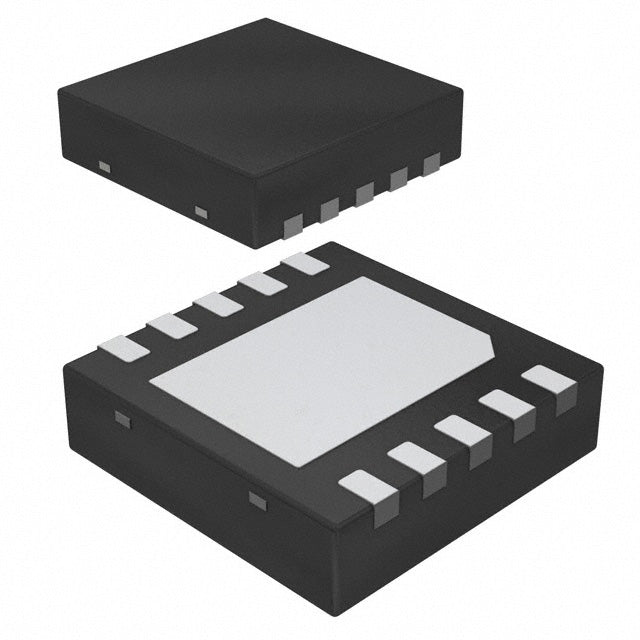

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Texas Instruments
LM5105SD/NOPB
LM5105SD/NOPB
Regular price
Dhs. 11.50
Regular price
Dhs. 12.10
Sale price
Dhs. 11.50
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 11.50 AED | Dhs. 11.50 AED |
| 15+ | Dhs. 11.13 AED | Dhs. 166.95 AED |
| 25+ | Dhs. 10.89 AED | Dhs. 272.25 AED |
| 50+ | Dhs. 10.29 AED | Dhs. 514.50 AED |
| 100+ | Dhs. 9.08 AED | Dhs. 908.00 AED |
| N+ | Dhs. 1.82 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | MOSFET (N-Channel) |
| Voltage - Supply | 8V ~ 14V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 1.8A, 1.8A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 118 V |
| Rise / Fall Time (Typ) | 15ns, 15ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-WDFN Exposed Pad |
| Supplier Device Package | 10-WSON (4x4) |
| ROHS |  |
Datasheets:
LM5105SD/NOPB
.pdf
×
