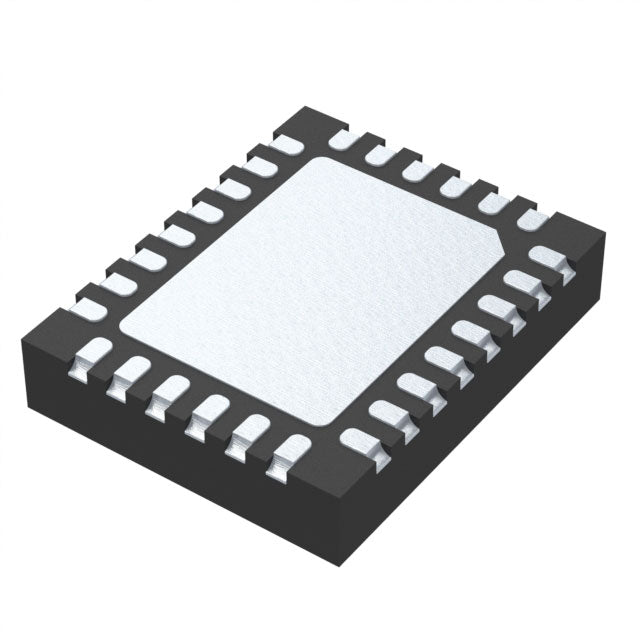

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Analog Devices Inc.
LTC7806RUFDM#PBF
LTC7806RUFDM#PBF
Regular price
Dhs. 36.90
Regular price
Dhs. 38.85
Sale price
Dhs. 36.90
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 36.90 AED | Dhs. 36.90 AED |
| 15+ | Dhs. 35.74 AED | Dhs. 536.10 AED |
| 25+ | Dhs. 34.97 AED | Dhs. 874.25 AED |
| 50+ | Dhs. 33.02 AED | Dhs. 1,651.00 AED |
| 100+ | Dhs. 29.14 AED | Dhs. 2,914.00 AED |
| N+ | Dhs. 5.83 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Output Type | Transistor Driver |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Number of Outputs | 1 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 40V |
| Frequency - Switching | 100kHz ~ 3MHz |
| Duty Cycle (Max) | 100% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Frequency Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (4x5) |
| ROHS |  |
Datasheets:
LTC7806RUFDM#PBF
.pdf
×
