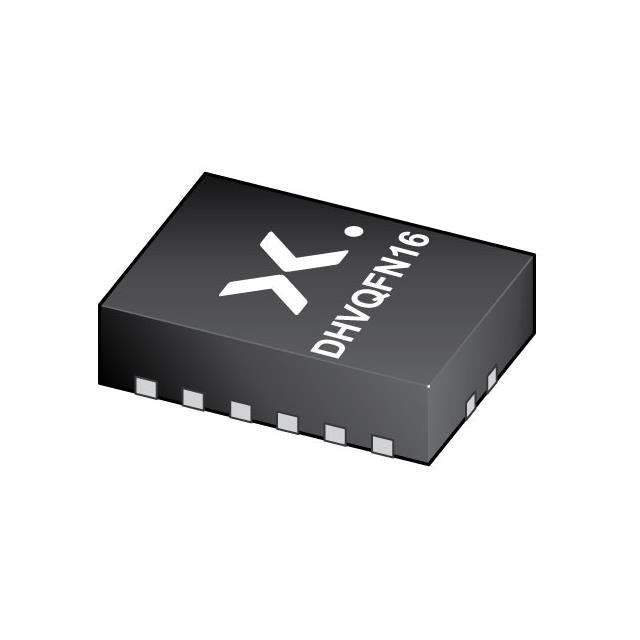

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Nexperia USA Inc.
NMUX1309BQX
NMUX1309BQX
Regular price
Dhs. 1.16
Regular price
Dhs. 1.24
Sale price
Dhs. 1.16
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 1.16 AED | Dhs. 1.16 AED |
| 15+ | Dhs. 1.14 AED | Dhs. 17.10 AED |
| 25+ | Dhs. 1.12 AED | Dhs. 28.00 AED |
| 50+ | Dhs. 1.05 AED | Dhs. 52.50 AED |
| 100+ | Dhs. 0.93 AED | Dhs. 93.00 AED |
| N+ | Dhs. 0.19 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Nexperia USA Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 146Ohm |
| Channel-to-Channel Matching (ΔRon) | 1Ohm |
| Voltage - Supply, Single (V+) | 1.5V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 17ns, 69ns |
| -3db Bandwidth | 380MHz |
| Charge Injection | 8pC |
| Channel Capacitance (CS(off), CD(off)) | 1.5pF |
| Current - Leakage (IS(off)) (Max) | 1nA (Typ) |
| Crosstalk | -80dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-VFQFN Exposed Pad |
| ROHS |  |
Datasheets:
NMUX1309BQX
.pdf
×
