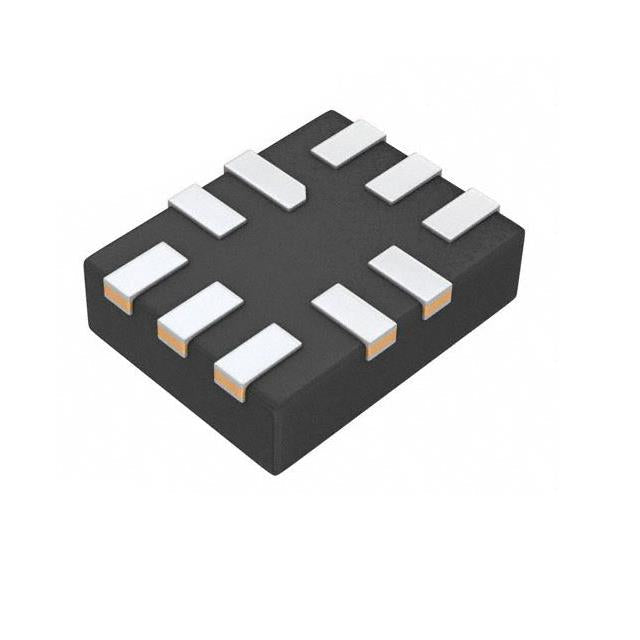

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Diodes Incorporated
PI3A223ZMEX
PI3A223ZMEX
Regular price
Dhs. 6.97
Regular price
Dhs. 7.34
Sale price
Dhs. 6.97
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 6.97 AED | Dhs. 6.97 AED |
| 15+ | Dhs. 6.75 AED | Dhs. 101.25 AED |
| 25+ | Dhs. 6.61 AED | Dhs. 165.25 AED |
| 50+ | Dhs. 6.24 AED | Dhs. 312.00 AED |
| 100+ | Dhs. 5.51 AED | Dhs. 551.00 AED |
| N+ | Dhs. 1.10 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Diodes Incorporated |
| Product Series | |
| Packaging | Factory | Cut Tape (CT) |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 750mOhm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm (Typ) |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.2V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 13ns, 38ns (Typ) |
| -3db Bandwidth | 84MHz |
| Charge Injection | 50pC |
| Channel Capacitance (CS(off), CD(off)) | 20pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -90dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-UFQFN |
| ROHS |  |
Datasheets:
PI3A223ZMEX
.pdf
×
