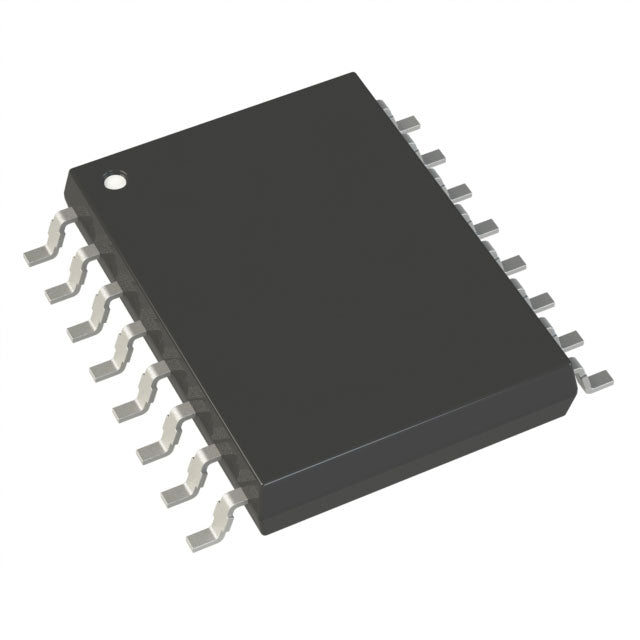

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Diodes Incorporated
PS509QEX
PS509QEX
Regular price
Dhs. 11.76
Regular price
Dhs. 12.40
Sale price
Dhs. 11.76
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 11.76 AED | Dhs. 11.76 AED |
| 15+ | Dhs. 11.41 AED | Dhs. 171.15 AED |
| 25+ | Dhs. 11.16 AED | Dhs. 279.00 AED |
| 50+ | Dhs. 10.54 AED | Dhs. 527.00 AED |
| 100+ | Dhs. 9.30 AED | Dhs. 930.00 AED |
| N+ | Dhs. 1.86 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Diodes Incorporated |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 200Ohm |
| Channel-to-Channel Matching (ΔRon) | 2.4Ohm |
| Voltage - Supply, Single (V+) | 10V ~ 36V |
| Voltage - Supply, Dual (V±) | ±5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 210ns, 191ns |
| -3db Bandwidth | - |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 15pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -96dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SSOP (0.154", 3.90mm Width) |
| ROHS |  |
Datasheets:
PS509QEX
.pdf
×
