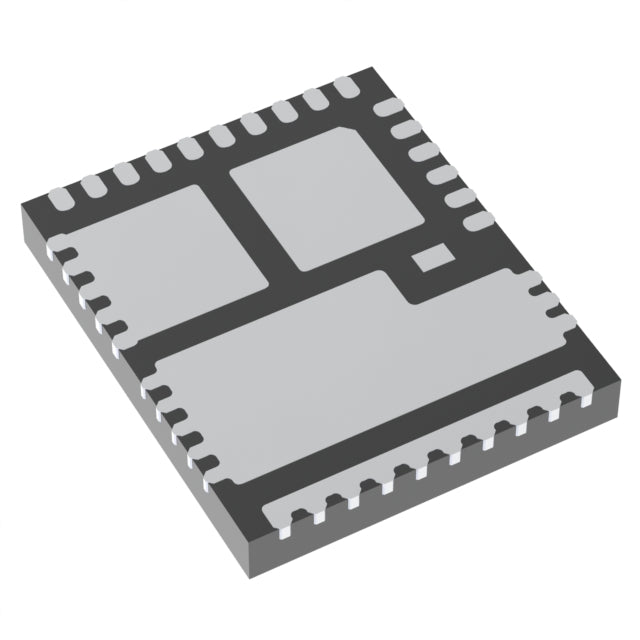

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Vishay Siliconix
SIC820ED-T1-GE3
Integrated Circuits & Chips
Vishay Siliconix
IC HBD POWER STAGE 80A 5X6 MLP
SIC820ED-T1-GE3
Regular price
$5.51
(Volume discounts available! Contact our customer support for customized pricing on bulk orders.Pro Tip: 🇺🇸 Switch your region to United States for localized offers.)
(Volume discounts available! Contact our customer support for customized pricing on bulk orders.Pro Tip: 🇺🇸 Switch your region to United States for localized offers.)
Regular price
$5.80
Sale price
Unit price
per
| quantity | unit price | total price |
| 1 | $5.51 | $5.51 |
| 15+ | $5.34 USD | $80.04 USD |
| 25+ | $5.22 USD | $130.50 USD |
| 50+ | $4.93 USD | $246.50 USD |
| 100+ | $4.35 USD | $435.00 USD |
| N+ | $2.90 USD | Price Inquiry |
Shipping calculated at checkout.
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Vishay Siliconix |
| Product Series | VRPower® |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | High Side |
| Applications | DC-DC Converters, Synchronous Buck Converter |
| Interface | Logic, PWM |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | - |
| Current - Output / Channel | 80A |
| Current - Peak Output | - |
| Voltage - Supply | 3.3V ~ 5V |
| Voltage - Load | 12V |
| Features | Bootstrap Circuit, Diode Emulation |
| Fault Protection | Over Current, Over Temperature, UVLO |
| Operating Temperature | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 39-PowerVFQFN |
| Supplier Device Package | PowerPAK® MLP39-65 |
Datasheets:
SIC820ED-T1-GE3
.pdf
×
