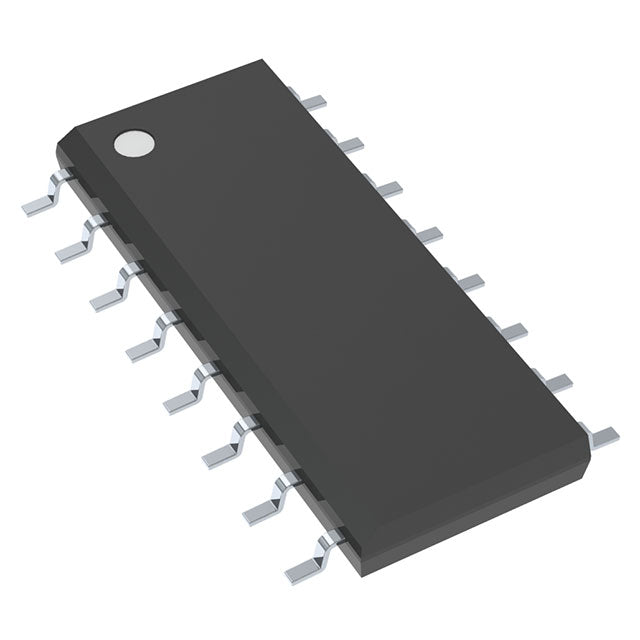

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Texas Instruments
SN74LS109ADR
SN74LS109ADR
Regular price
Dhs. 4.38
Regular price
Dhs. 4.61
Sale price
Dhs. 4.38
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 4.38 AED | Dhs. 4.38 AED |
| 15+ | Dhs. 4.24 AED | Dhs. 63.60 AED |
| 25+ | Dhs. 4.15 AED | Dhs. 103.75 AED |
| 50+ | Dhs. 3.92 AED | Dhs. 196.00 AED |
| 100+ | Dhs. 3.46 AED | Dhs. 346.00 AED |
| N+ | Dhs. 0.69 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LS |
| Packaging | Marketplace | Cut Tape (CT) |
| Function | Set(Preset) and Reset |
| Type | JK Type |
| Output Type | Complementary |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Clock Frequency | 33 MHz |
| Max Propagation Delay @ V, Max CL | 40ns @ 5V, 15pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 400µA, 8mA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Iq) | 8 mA |
| Input Capacitance | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC |
| Supplier Device Package | 16-SOIC (0.154", 3.90mm Width) |
| ROHS |  |
Datasheets:
SN74LS109ADR
.pdf
×
