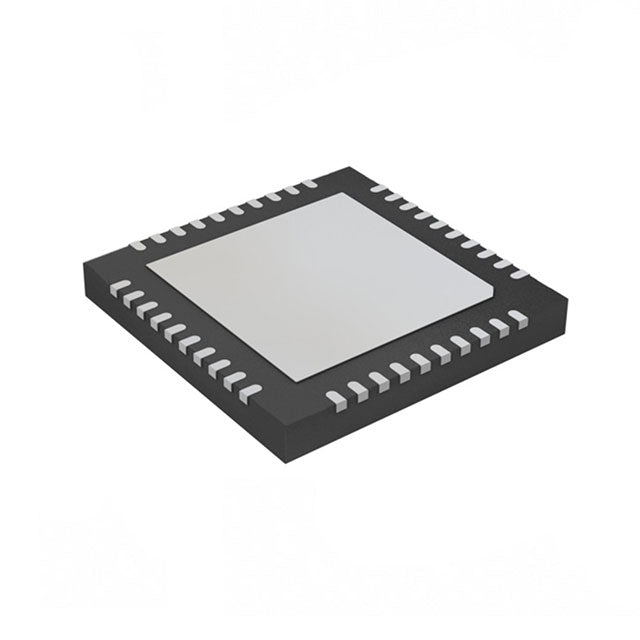

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Texas Instruments
TPS274C65CPHWRHAR
TPS274C65CPHWRHAR
Regular price
Dhs. 12.66
Regular price
Dhs. 13.34
Sale price
Dhs. 12.66
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 12.66 AED | Dhs. 12.66 AED |
| 15+ | Dhs. 12.27 AED | Dhs. 184.05 AED |
| 25+ | Dhs. 12.01 AED | Dhs. 300.25 AED |
| 50+ | Dhs. 11.34 AED | Dhs. 567.00 AED |
| 100+ | Dhs. 10.01 AED | Dhs. 1,001.00 AED |
| N+ | Dhs. 2.00 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Type | General Purpose |
| Number of Outputs | 4 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | PWM |
| Voltage - Load | 12V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 2.26A |
| Rds On (Typ) | 72mOhm |
| nput Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Current Limiting (Adjustable), Open Load Detect, Over Temperature, Reverse Current, Short Circuit, UVLO |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-VQFN (6x6) |
Datasheets:
TPS274C65CPHWRHAR
.pdf
×
