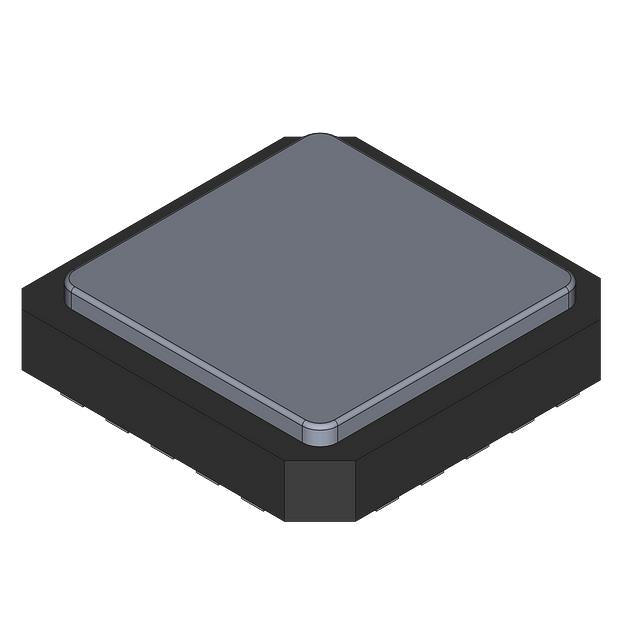

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Texas Instruments
UC1709L
UC1709L
Regular price
Dhs. 124.34
Regular price
Dhs. 130.89
Sale price
Dhs. 124.34
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 124.34 AED | Dhs. 124.34 AED |
| 15+ | Dhs. 120.42 AED | Dhs. 1,806.30 AED |
| 25+ | Dhs. 117.80 AED | Dhs. 2,945.00 AED |
| 50+ | Dhs. 111.26 AED | Dhs. 5,563.00 AED |
| 100+ | Dhs. 98.17 AED | Dhs. 9,817.00 AED |
| N+ | Dhs. 19.63 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Bulk | |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, MOSFET (N-Channel) |
| Voltage - Supply | 5V ~ 40V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 40ns, 40ns |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-CLCC |
| Supplier Device Package | 20-LCCC (8.89x8.89) |
Datasheets:
UC1709L
.pdf
×
