Altera 10CL016ZM164I8G

Altera 10CL016ZM164I8G - Cyclone 10 LP FPGA Overview

The 10CL016ZM164I8G is a high-performance Field Programmable Gate Array (FPGA) from Altera's Cyclone 10 LP series, designed for cost-sensitive applications requiring low power consumption and reliable performance. This FPGA features 15,408 logic elements organized in 963 LABs, providing substantial processing capability for embedded systems, industrial control, signal processing, and communication applications.

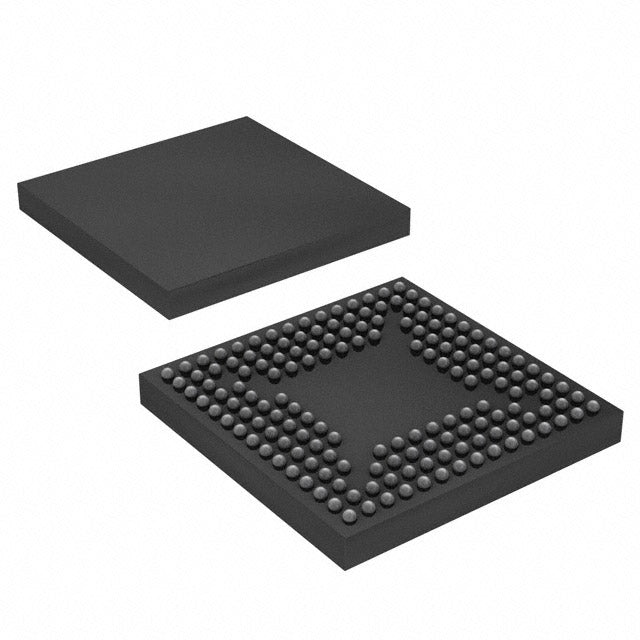

With 516,096 total RAM bits and 87 I/O pins in a compact 164-MBGA (8x8) surface mount package, this device offers excellent flexibility for custom digital logic implementations. The industrial temperature range of -40°C to 100°C makes it suitable for harsh operating environments.

Key Features & Benefits

• 15,408 Logic Elements - Ample resources for complex digital designs
• 516Kb Embedded Memory - Sufficient on-chip RAM for buffering and data storage
• 87 I/O Pins - Flexible connectivity options for interfacing with external components
• 1.0V Core Voltage - Low power consumption for energy-efficient designs
• Industrial Temperature Range - Reliable operation from -40°C to 100°C
• Compact 164-MBGA Package - Space-saving 8x8mm footprint for dense PCB layouts

Typical Applications

This Cyclone 10 LP FPGA is ideal for industrial automation, motor control systems, sensor interfaces, protocol bridging, video processing, and embedded computing applications where programmable logic, low power, and cost-effectiveness are critical requirements.
