Altera 5CSEBA2U23C6N

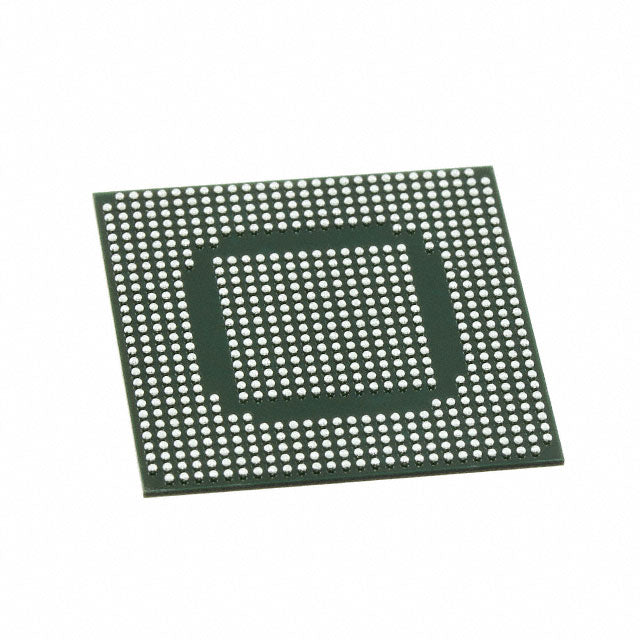

Altera 5CSEBA2U23C6N - Cyclone® V SE SoC FPGA

The 5CSEBA2U23C6N from Altera represents a powerful System-on-Chip (SoC) solution combining FPGA fabric with hard processor system (HPS) technology. This device integrates a dual ARM® Cortex®-A9 MPCore™ processor running at 925MHz with 25,000 logic elements of FPGA programmable logic, delivering exceptional performance for embedded applications requiring both processing power and hardware acceleration.

Key Features & Benefits

• High-Performance Processing: Dual ARM Cortex-A9 MPCore with CoreSight debug technology running at 925MHz
• Flexible FPGA Logic: 25K logic elements for custom hardware acceleration and peripheral implementation
• Rich Connectivity: Integrated Ethernet, USB OTG, CANbus, I2C, SPI, UART/USART, and MMC/SD/SDIO interfaces
• Industrial Temperature Range: Operates reliably from 0°C to 85°C (junction temperature)
• Compact BGA Package: 672-ball UBGA (23mm × 23mm) for space-constrained designs
• RoHS Compliant: Meets environmental standards for global deployment

Ideal Applications

Perfect for industrial automation, motor control, embedded vision systems, communications infrastructure, medical devices, and any application requiring the combination of real-time processing with FPGA-based hardware acceleration and custom I/O.

Design Support

Full traceability, comprehensive datasheets, reference designs, and technical documentation available. Our engineering team provides design-in support to help you integrate this SoC FPGA into your next-generation embedded system.

• 5CSEBA2U23C6N.pdf
