Altera 5CSEBA2U23C7N

Altera 5CSEBA2U23C7N - Cyclone V SE SoC FPGA

The 5CSEBA2U23C7N is a high-performance System-on-Chip (SoC) FPGA from Altera's Cyclone V SE family, combining a dual-core ARM Cortex-A9 MPCore processor with CoreSight running at 800MHz alongside 25,000 logic elements of programmable FPGA fabric. This powerful combination delivers exceptional processing capabilities for embedded applications requiring both hard processor performance and FPGA flexibility.

Key Features & Benefits

• Dual-Core ARM Cortex-A9 MPCore Processor: 800MHz processing power with CoreSight debug technology for advanced embedded applications
• 25,000 Logic Elements: Extensive programmable FPGA fabric for custom hardware acceleration and parallel processing
• 64KB On-Chip RAM: Fast, integrated memory for critical data and code execution
• Comprehensive Connectivity: CANbus, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG interfaces for versatile system integration
• Industrial Temperature Range: Reliable operation from 0°C to 85°C (TJ) for demanding environments

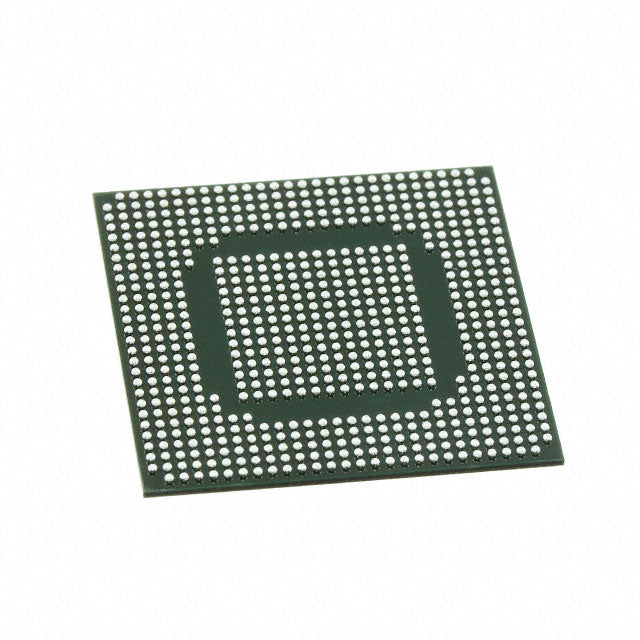

• Compact 672-UBGA Package: 23x23mm footprint optimizes board space while providing excellent thermal performance
• RoHS Compliant: Environmentally friendly and ready for global deployment

Ideal Applications

This SoC FPGA is engineered for applications demanding both processor performance and FPGA configurability, including:

• Industrial automation and control systems
• Automotive electronics and ADAS (Advanced Driver Assistance Systems)
• Communications infrastructure and protocol processing
• Aerospace and defense embedded systems
• Medical imaging and diagnostic equipment
• Motor control and power management

Why Choose the 5CSEBA2U23C7N?

This SoC FPGA delivers the perfect balance of hard processor performance and FPGA flexibility, enabling you to accelerate time-critical functions in hardware while running complex software on the ARM cores. The active production status ensures long-term availability for your designs, while RoHS compliance guarantees environmental responsibility. With comprehensive peripheral support and industrial-grade temperature tolerance, the 5CSEBA2U23C7N is your reliable solution for next-generation embedded systems.

• 5CSEBA2U23C7N.pdf
