Altera 5CSEBA2U23C7SN

Altera Cyclone® V SoC FPGA - 5CSEBA2U23C7SN

The Altera 5CSEBA2U23C7SN is a high-performance System-on-Chip (SoC) FPGA from the Cyclone® V SE series, combining a powerful ARM® Cortex®-A9 MPCore™ processor running at 800MHz with 25,000 logic elements of programmable FPGA fabric. This dual-architecture design delivers exceptional flexibility for embedded applications requiring both hard processor performance and FPGA configurability.

Key Features & Benefits

• Dual-Core Architecture: Single ARM® Cortex®-A9 MPCore™ with CoreSight™ debug technology paired with 25K logic element FPGA
• High-Speed Processing: 800MHz processor speed with 64KB on-chip RAM for demanding real-time applications
• Rich Connectivity: Integrated CANbus, Ethernet, USB OTG, I2C, SPI, UART/USART, MMC/SD/SDIO interfaces
• Industrial Temperature Range: Operates reliably from 0°C to 85°C (TJ) for harsh environments
• Advanced Peripherals: DMA, Power-On Reset (POR), and Watchdog Timer (WDT) for robust system design

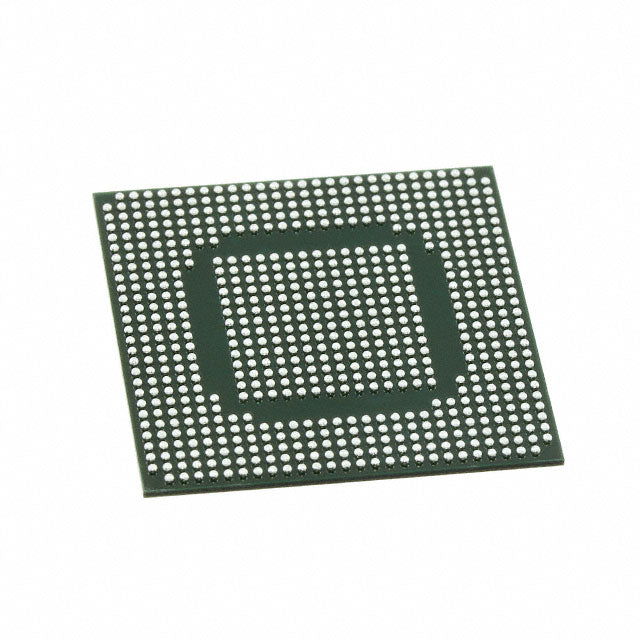

• Compact 672-UBGA Package: 23mm x 23mm footprint optimizes board space
• RoHS Compliant: Meets environmental standards for global deployment

Ideal Applications

Perfect for aerospace, automotive, industrial automation, medical devices, and telecommunications systems requiring deterministic processing, hardware acceleration, and extensive I/O connectivity. The combination of hard processor and FPGA fabric enables system architects to partition workloads optimally between software and hardware acceleration.

Why Choose This SoC FPGA?

As an authorized distributor, we provide full traceability, genuine Altera components with long lifecycle availability, and comprehensive technical support including datasheets, reference designs, and design-in assistance. All units ship in tray packaging with complete compliance documentation (RoHS/REACH).

Stock Status: Active and available for immediate shipment. Contact our engineering team for volume pricing, custom packaging options, or technical consultation.

• 5CSEBA2U23C7SN.pdf
