Altera 5CSEBA4U23C7N

Altera 5CSEBA4U23C7N - Cyclone V SE SoC FPGA

The 5CSEBA4U23C7N is a high-performance System-on-Chip (SoC) FPGA from Altera's Cyclone V SE series, combining a dual-core ARM Cortex-A9 MPCore processor with CoreSight debug technology and 40,000 logic elements of FPGA fabric. Operating at 800MHz with 64KB on-chip RAM, this device delivers exceptional processing power for embedded applications requiring both hard processor performance and FPGA flexibility.

Featuring comprehensive connectivity options including Ethernet, USB OTG, CANbus, SPI, I2C, UART/USART, and MMC/SD/SDIO interfaces, the 5CSEBA4U23C7N is ideal for industrial automation, automotive systems, communications infrastructure, and aerospace applications. The device includes DMA, power-on-reset (POR), and watchdog timer (WDT) peripherals for robust system operation.

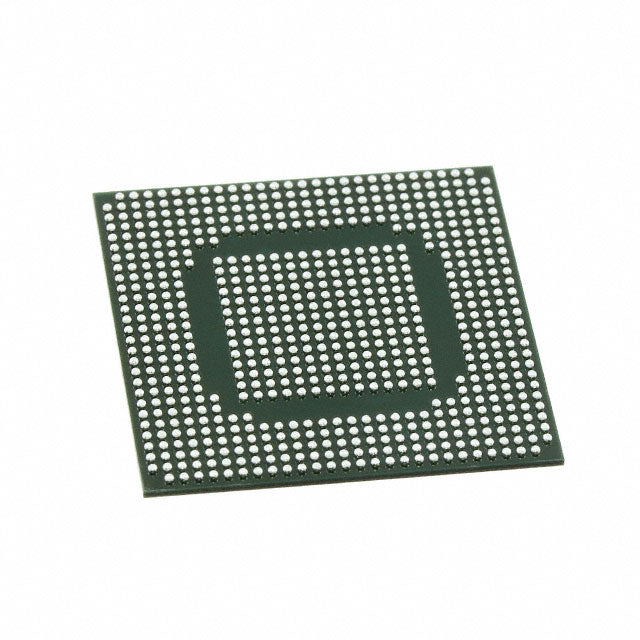

Packaged in a compact 672-pin UBGA (23x23mm) format and qualified for industrial temperature range (0°C to 85°C junction temperature), this SoC FPGA is supplied in tray packaging and maintains active production status. RoHS compliant for environmental compliance.

Key Features:

• Dual ARM Cortex-A9 MPCore processor with CoreSight at 800MHz
• 40,000 logic elements FPGA fabric
• 64KB integrated RAM
• Rich connectivity: Ethernet, USB OTG, CANbus, SPI, I2C, UART, MMC/SD/SDIO
• Industrial temperature range: 0°C to 85°C (TJ)
• 672-UBGA package (23x23mm)
• RoHS compliant, active production status

• 5CSEBA4U23C7N.pdf
