Altera 5CSEBA6U19C7SN

Altera Cyclone V SE SoC FPGA - 5CSEBA6U19C7SN

The 5CSEBA6U19C7SN is a high-performance System-on-Chip (SoC) FPGA from Altera's Cyclone V SE family, combining a single ARM Cortex-A9 MPCore processor with CoreSight debug capabilities and 110,000 logic elements of FPGA fabric. This dual-architecture device delivers exceptional flexibility for embedded processing and programmable logic applications in industrial, automotive, communications, and aerospace systems.

Key Features

• Processor: Single ARM Cortex-A9 MPCore with CoreSight at 800MHz
• FPGA Fabric: 110K logic elements for custom hardware acceleration
• Memory: 64KB embedded RAM
• Connectivity: CANbus, Ethernet, USB OTG, I2C, SPI, UART/USART, MMC/SD/SDIO, EBI/EMI
• Peripherals: DMA, Power-On Reset (POR), Watchdog Timer (WDT)
• Operating Temperature: Industrial grade 0°C to 85°C (TJ)

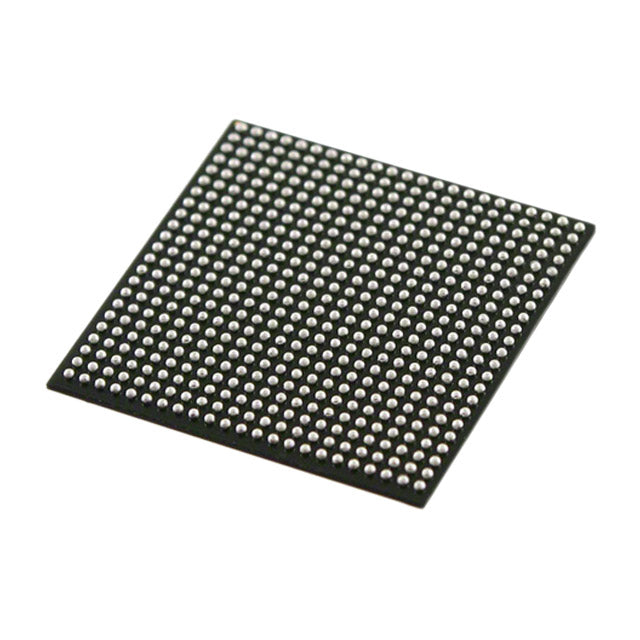

• Package: 484-ball FBGA (19mm × 19mm UBGA)

Applications

Ideal for motor control, industrial automation, protocol bridging, video processing, communications infrastructure, and embedded vision systems requiring both deterministic processing and reconfigurable logic.

Documentation: Full datasheets, reference manuals, and development resources available. RoHS compliant. Authentic Altera components with full traceability.

• 5CSEBA6U19C7SN.pdf
