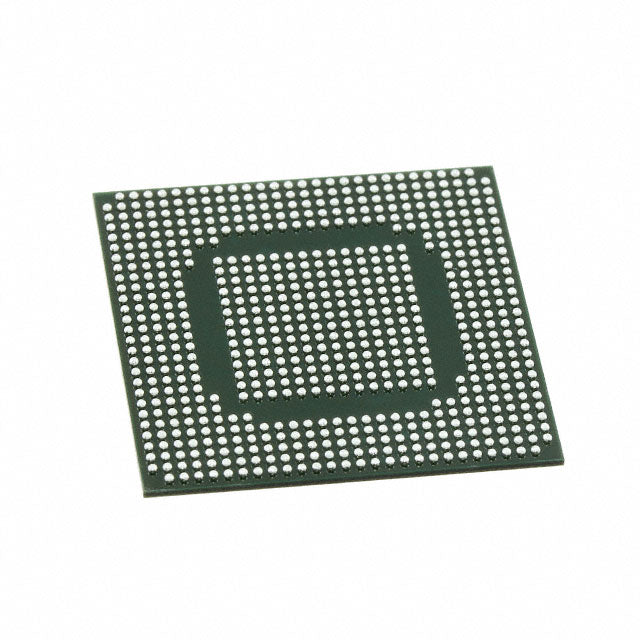

Altera 5CSEMA2U23I7N

Altera 5CSEMA2U23I7N - Cyclone V SoC FPGA with Dual ARM Cortex-A9

The 5CSEMA2U23I7N is a high-performance System-on-Chip (SoC) FPGA from Altera's Cyclone® V SE series, combining a dual-core ARM® Cortex®-A9 MPCore™ processor running at 800MHz with 25K logic elements of programmable FPGA fabric. This powerful combination delivers the flexibility of FPGA logic with the processing capability of embedded ARM cores, ideal for industrial automation, embedded vision, motor control, and communications applications.

Key Features & Benefits

• Dual ARM Cortex-A9 MPCore with CoreSight - 800MHz processing power for demanding embedded applications
• 25K Logic Elements FPGA - Flexible programmable logic for custom hardware acceleration
• 64KB On-Chip RAM - Fast memory for real-time processing
• Rich Connectivity - CANbus, Ethernet, USB OTG, I2C, SPI, UART/USART, MMC/SD/SDIO interfaces
• Industrial Temperature Range - Operates reliably from -40°C to 100°C (TJ)
• Compact 672-UBGA Package - 23x23mm footprint for space-constrained designs
• Active Part Status - Long-term availability for production designs

Applications

• Industrial automation and control systems
• Embedded vision and image processing
• Motor control and drive systems
• Communications infrastructure
• Automotive electronics (industrial temp rated)
• Aerospace and defense systems
• Medical imaging equipment

RoHS Compliant - Meets environmental standards for global markets. Backed by full technical documentation and long-term supply commitment from Altera.

• 5CSEMA2U23I7N.pdf
