Altera 5CSXFC2C6U23C7N

Altera Cyclone® V SX SoC FPGA - 5CSXFC2C6U23C7N

The 5CSXFC2C6U23C7N is a high-performance System-on-Chip (SoC) FPGA from Altera's Cyclone® V SX family, combining dual ARM® Cortex®-A9 MPCore™ processors with 25K logic elements of FPGA fabric. This versatile device delivers 800MHz processing power with comprehensive connectivity options including Ethernet, USB OTG, CANbus, and multiple serial interfaces.

Key Features:

• Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ architecture
• 25,000 logic elements FPGA fabric for custom hardware acceleration
• 64KB on-chip RAM with DMA, POR, and WDT peripherals
• Rich connectivity: Ethernet, USB OTG, CANbus, I2C, SPI, UART/USART, MMC/SD/SDIO
• Industrial temperature range: 0°C to 85°C (TJ)

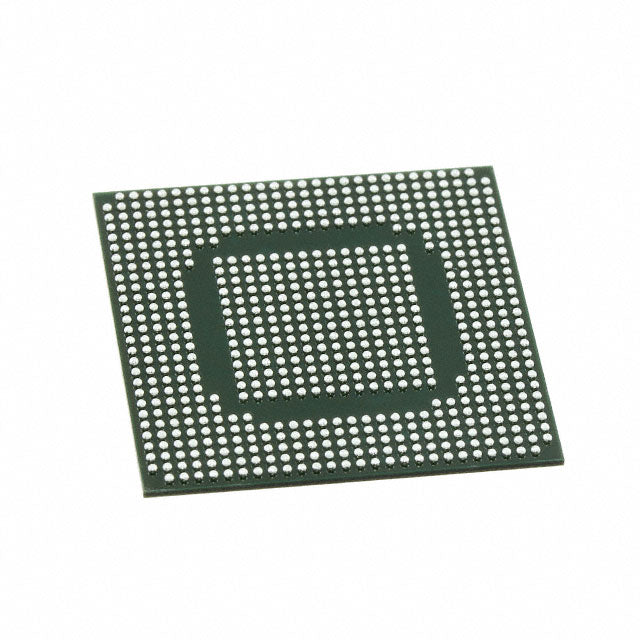

• Compact 672-UBGA (23x23mm) package
• RoHS compliant, active production status

Ideal for industrial automation, automotive systems, communications infrastructure, and embedded applications requiring both processor performance and FPGA flexibility.

• 5CSXFC2C6U23C7N.pdf
