Altera 5CSXFC6C6U23I7N

Altera Cyclone V SX FPGA System-on-Chip (SoC)

The 5CSXFC6C6U23I7N is a high-performance FPGA SoC from Altera's Cyclone® V SX family, combining the flexibility of FPGA logic with the processing power of dual ARM® Cortex®-A9 MPCore™ processors. This hybrid architecture delivers exceptional performance for embedded applications requiring both programmable logic and hard processor system integration.

Key Features & Benefits

• Dual-Core Processing: ARM Cortex-A9 MPCore with CoreSight running at 800MHz for demanding real-time applications
• Extensive FPGA Resources: 110K logic elements providing flexible hardware acceleration and custom logic implementation
• Rich Connectivity: Integrated CANbus, Ethernet, USB OTG, I2C, SPI, UART/USART, and MMC/SD/SDIO interfaces
• Industrial Temperature Range: -40°C to 100°C (TJ) operation for harsh environment deployment

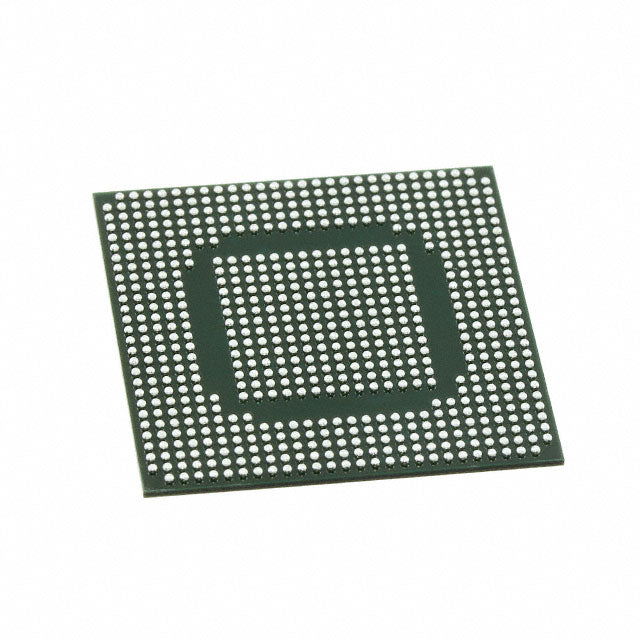

• Compact Package: 672-UBGA (23x23mm) footprint optimizing board space
• Full Compliance: RoHS/REACH certified for global regulatory requirements

Ideal Applications

Perfect for aerospace avionics, automotive ADAS systems, industrial automation controllers, medical imaging equipment, and telecom infrastructure requiring deterministic processing with FPGA acceleration.

Design Support

Full traceability documentation, reference designs, and technical datasheets available. Our engineering team provides design-in support for rapid prototyping and production integration.

• 5CSXFC6C6U23I7N.pdf
