Altera 5SGXEA4H2F35I2LG

Altera Stratix® V GX FPGA - 5SGXEA4H2F35I2LG

The 5SGXEA4H2F35I2LG is a high-performance FPGA from Altera's Stratix® V GX family, engineered for demanding applications in aerospace, automotive, industrial automation, and telecommunications infrastructure. This enterprise-grade device delivers exceptional logic density with 420,000 logic elements and 158,500 LABs/CLBs, making it ideal for complex SoC designs requiring substantial processing power.

Key Features & Benefits

• Massive Logic Capacity: 420,000 logic elements with 158,500 LABs for complex FPGA-based system designs
• High I/O Count: 552 I/O pins enabling extensive connectivity for multi-interface applications
• Substantial Memory: 37.9 Mb (37,888,000 bits) total on-chip RAM for data-intensive operations
• Industrial Temperature Range: Operates reliably from -40°C to 100°C (TJ) for harsh environments

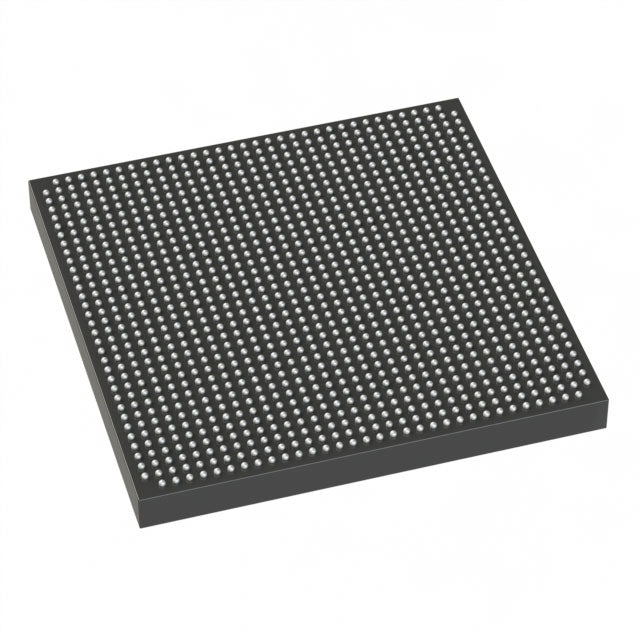

• Compact High-Density Package: 1152-FBGA (35mm × 35mm) surface-mount package optimizes board space
• RoHS Compliant: Meets environmental standards for lead-free manufacturing
• Precision Power Supply: 0.82V to 0.88V core voltage for optimized power efficiency

Typical Applications

This Stratix V GX FPGA is well-suited for high-bandwidth data processing, protocol bridging, signal processing, embedded vision systems, test & measurement equipment, and advanced communication infrastructure where long-term component availability and full technical documentation are critical.

All specifications are guaranteed by the manufacturer. Full datasheets and technical documentation available upon request.

No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
