Altera 5SGXMA3E2H29I2LG

Altera Stratix V GX FPGA - High-Density Programmable Logic Device

The 5SGXMA3E2H29I2LG is a high-performance FPGA from Altera's Stratix® V GX family, engineered for demanding aerospace, automotive, industrial, and telecommunications applications requiring exceptional logic density and reliability.

Key Features & Benefits

• 340,000 Logic Elements - Massive programmable logic capacity for complex system designs and advanced digital signal processing
• 600 I/O Pins - Extensive connectivity for high-bandwidth interfaces and multi-protocol support
• 19.5 Megabits Embedded RAM - Substantial on-chip memory for data buffering, processing, and high-speed caching
• Industrial Temperature Range - Operates reliably from -40°C to 100°C (junction temperature) for harsh environments
• RoHS Compliant - Meets environmental standards for global deployment and regulatory compliance

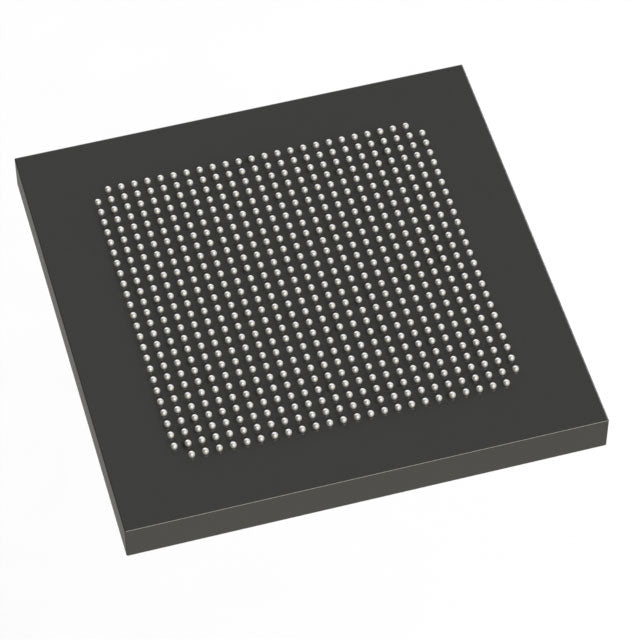

• 780-HBGA Package - Compact 33x33mm footprint for space-constrained designs with excellent thermal performance
• 128,300 LABs/CLBs - Advanced logic array blocks for flexible, high-performance circuit implementation
• 0.82V ~ 0.88V Core Voltage - Low-power operation for energy-efficient designs

Target Applications

Ideal for high-performance computing, advanced signal processing, communications infrastructure, test and measurement equipment, broadcast video processing, medical imaging systems, and mission-critical embedded systems requiring long-term availability and traceable sourcing from authorized distributors.

Why Choose This FPGA?

The Stratix V GX family delivers industry-leading performance for bandwidth-intensive applications. With its combination of high logic density, extensive I/O capabilities, and industrial-grade temperature tolerance, the 5SGXMA3E2H29I2LG is the optimal choice for engineers developing next-generation systems that demand reliability, performance, and longevity.

Quality Assurance & Support

All products sourced exclusively from authorized distributors with full manufacturer documentation, certificates of conformance, and complete traceability. We provide long-term availability commitment for lifecycle-critical applications, ensuring your designs remain supported throughout their operational lifetime.

Technical Resources

Full datasheets, application notes, reference designs, and technical support available. Contact our engineering team for design assistance, sample requests, or volume pricing inquiries.

No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
