Altera 5SGXMA5K2F40C1WN

Product Overview

The 5SGXMA5K2F40C1WN is a high-performance Field Programmable Gate Array (FPGA) from Altera's Stratix® V GX series, designed for demanding embedded, industrial, automotive, and IoT applications. This premium semiconductor component delivers exceptional processing power with 490,000 logic elements and 185,000 LABs/CLBs, making it ideal for complex digital signal processing, high-speed data acquisition, and advanced control systems.

Engineered for mission-critical environments, this FPGA combines massive parallel processing capabilities with industrial-grade reliability. The Stratix V GX architecture provides superior performance-per-watt efficiency, enabling designers to implement sophisticated algorithms while maintaining thermal and power budgets in space-constrained applications.

Key Features & Benefits

• Massive Logic Capacity: 490,000 logic elements provide extensive resources for implementing sophisticated algorithms, parallel processing architectures, and complex state machines. This density enables consolidation of multiple discrete components into a single FPGA, reducing BOM costs and board space.
• High I/O Count: 696 I/O pins enable robust connectivity to multiple peripherals, sensors, communication interfaces, and high-speed data buses. Supports various I/O standards including LVDS, SSTL, HSTL, and differential signaling for maximum flexibility.
• Substantial Memory: 46,080,000 RAM bits (45 Mb) support large data buffers, lookup tables, FIFOs, and embedded processing requirements. Distributed memory architecture ensures low-latency access for time-critical operations.
• Industrial Temperature Range: Operates reliably from 0°C to 85°C (junction temperature), suitable for harsh industrial environments, automotive under-hood applications, and outdoor installations without additional thermal management.

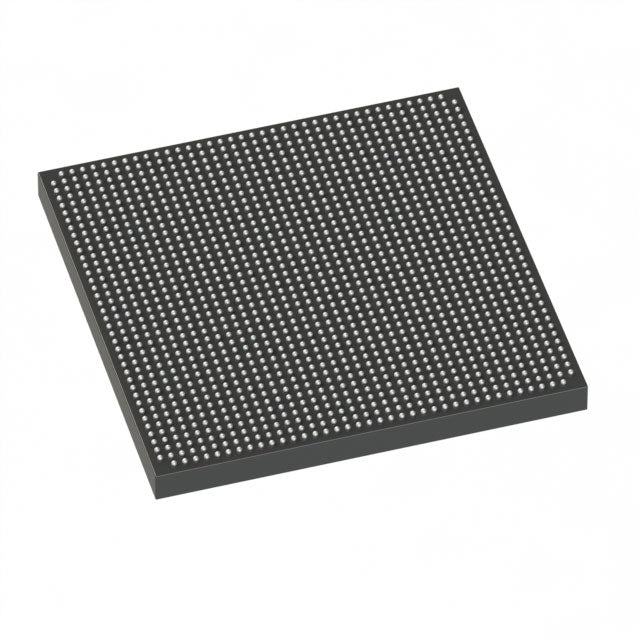

• Advanced Packaging: 1517-FBGA (40x40mm) fine-pitch ball grid array package with surface mount technology enables high-density PCB designs. Optimized for signal integrity and thermal dissipation in multi-layer board layouts.
• Precision Power Supply: 0.87V to 0.93V core supply voltage ensures stable operation and power efficiency. Low-voltage operation reduces overall system power consumption and heat generation.
• Transceiver Integration: Stratix V GX series includes high-speed transceivers supporting data rates up to 12.5 Gbps, ideal for PCIe Gen3, 10G Ethernet, and other high-bandwidth protocols.
• DSP Optimization: Dedicated DSP blocks with variable-precision architecture accelerate signal processing, filtering, FFT operations, and mathematical computations.

Technical Specifications Summary

• Logic Elements: 490,000 adaptive logic modules (ALMs)
• LABs/CLBs: 185,000 configurable logic blocks
• Embedded Memory: 46,080,000 RAM bits (M20K blocks)
• I/O Pins: 696 user I/O with programmable standards
• Package: 1517-FBGA (40mm x 40mm footprint)
• Core Voltage: 0.87V - 0.93V (VCC)
• Operating Temperature: Commercial grade, 0°C to +85°C (TJ)
• Mounting: Surface mount technology (SMT)

Applications & Use Cases

This Stratix V GX FPGA is engineered for mission-critical applications across multiple industries:

• Telecommunications Infrastructure: High-speed data processing, baseband processing, protocol conversion, and network packet processing for 5G, LTE, and fiber-optic systems.
• Automotive Electronics: Advanced driver assistance systems (ADAS), sensor fusion, LiDAR processing, radar signal processing, and autonomous vehicle compute platforms.
• Industrial Automation: Machine vision systems, motion control, programmable logic controllers (PLCs), robotics control, and real-time monitoring systems.
• Medical Imaging: Ultrasound beamforming, CT/MRI image reconstruction, digital X-ray processing, and diagnostic equipment signal processing.
• Aerospace & Defense: Radar systems, software-defined radio (SDR), electronic warfare, signal intelligence (SIGINT), and secure communications.
• IoT Edge Computing: AI acceleration at the edge, machine learning inference, video analytics, and intelligent sensor hubs.
• Test & Measurement: High-speed data acquisition, arbitrary waveform generation, protocol analyzers, and oscilloscope front-ends.
• Broadcast & Video: 4K/8K video processing, codec acceleration, video transcoding, and broadcast equipment.

Design & Integration Support

The 5SGXMA5K2F40C1WN is supported by Altera's comprehensive Quartus Prime design suite, providing advanced synthesis, place-and-route, timing analysis, and verification tools. Designers benefit from extensive IP libraries including memory controllers, DSP functions, communication protocols, and interface standards.

Key design resources include:

• Quartus Prime software with TimeQuest timing analyzer
• ModelSim simulation environment
• Platform Designer (Qsys) for system integration
• OpenCL support for high-level synthesis
• Reference designs and application notes
• Pin planning and I/O assignment tools

Quality & Authenticity Guarantee

At HQICKEY, we guarantee 100% authentic Altera components with full traceability and lifecycle support. Every FPGA undergoes rigorous quality inspection to ensure it meets original manufacturer specifications. We provide comprehensive technical documentation, datasheets, and engineering support to help you integrate this component successfully into your designs.

Our quality assurance includes:

• Direct sourcing from authorized distributors and manufacturers
• Lot code and date code verification
• Visual inspection and authenticity testing
• ESD-safe handling and packaging
• Full documentation and certificates of conformance
• Warranty protection and return support

Ordering & Availability

The 5SGXMA5K2F40C1WN is available for immediate shipment with competitive pricing for volume orders. We maintain stock of critical components to support your production schedules and prototype development. Contact our sales team for quantity pricing, lead times, and custom packaging options.

Related Products & Resources

Explore our complete range of FPGAs Field Programmable Gate Array ICs for additional Altera Stratix, Cyclone, and Arria families, as well as Xilinx Virtex, Kintex, Artix, and Zynq series, plus Lattice, Microsemi, and other leading FPGA solutions. Find the perfect FPGA for your application requirements.

Stay updated with the latest semiconductor industry insights, application notes, technical guides, and design tips on our HQICKEY News & Technical Blog. Our engineering team regularly publishes content on FPGA design best practices, emerging technologies, and product selection guidance.

Technical Support & Documentation

Need assistance with FPGA selection, pin mapping, power supply design, or system integration? Our engineering team provides expert technical support to help you choose the right component for your application. Contact us for datasheets, reference designs, application-specific recommendations, and design review services.

We offer comprehensive pre-sales and post-sales support including:

• Component selection and cross-reference assistance
• Technical datasheets and application notes
• PCB layout guidelines and design recommendations
• Power supply and thermal management guidance
• Programming and configuration support
• Obsolescence management and lifecycle planning

Why Choose HQICKEY?

HQICKEY is your trusted partner for premium semiconductor components and electronic parts. We specialize in serving embedded systems designers, industrial automation engineers, automotive electronics developers, and IoT innovators worldwide. Our commitment to authenticity, technical expertise, and customer service sets us apart.

Visit HQICKEY.com to explore our full catalog of FPGAs, microcontrollers, memory ICs, power management components, and more. Experience the HQICKEY difference: authentic parts, expert support, and reliable delivery.

No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
