Altera 5SGXMA7K2F35C1WN

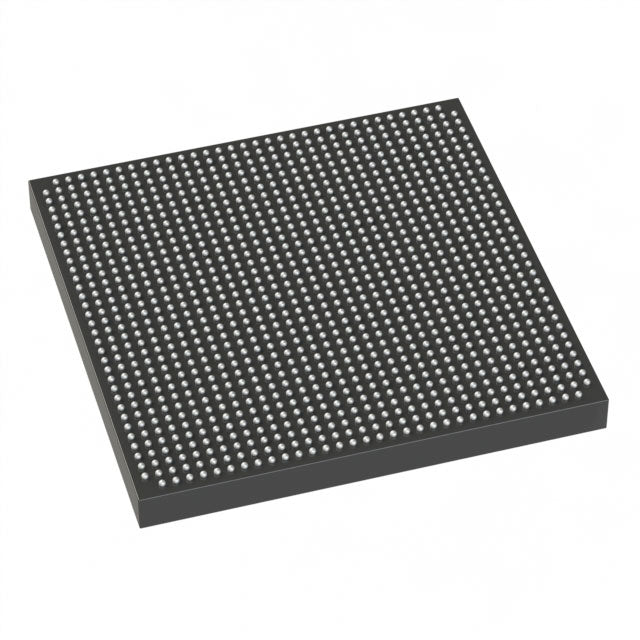

Altera Stratix V GX FPGA - 5SGXMA7K2F35C1WN

The 5SGXMA7K2F35C1WN is a high-performance Field Programmable Gate Array (FPGA) from Altera's premium Stratix® V GX family, engineered for demanding embedded, industrial, automotive, and IoT applications requiring exceptional logic density and I/O capabilities.

Key Features & Benefits

• Massive Logic Capacity: 622,000 logic elements and 234,720 LABs/CLBs deliver the processing power needed for complex signal processing, high-speed data acquisition, and advanced control systems
• Extensive Memory: 51.2 Mb total RAM bits enable efficient data buffering and on-chip storage for memory-intensive applications
• High I/O Count: 432 I/O pins provide flexible connectivity for multi-interface designs and high-bandwidth communication protocols
• Industrial-Grade Reliability: Operating temperature range of 0°C to 85°C (TJ) ensures stable performance in harsh industrial environments
• Compact Surface Mount Package: 1152-FBGA (35x35mm) footprint optimizes board space while maintaining excellent thermal characteristics
• Precision Power Supply: 0.87V to 0.93V supply voltage range supports low-power operation and thermal management

Ideal Applications

This FPGA is perfectly suited for:

• High-Performance Computing: Data center acceleration, parallel processing, and computational workloads
• Telecommunications Infrastructure: 5G base stations, optical networking, and protocol processing
• Industrial Automation: Motion control, machine vision, and real-time process monitoring
• Medical Imaging Equipment: Ultrasound systems, CT scanners, and diagnostic instrumentation
• Aerospace & Defense Systems: Radar processing, secure communications, and mission-critical applications
• Advanced Driver Assistance Systems (ADAS): Sensor fusion, image processing, and autonomous vehicle computing

Why Choose HQICKEY for Your FPGA Needs?

HQICKEY specializes in premium semiconductor components with a focus on authenticity, reliability, and long-term support. When you source the 5SGXMA7K2F35C1WN from us, you receive:

• 100% Genuine Components: Direct sourcing from authorized distributors with full traceability documentation
• Comprehensive Technical Support: Access to complete datasheets, application notes, and design resources
• Lifecycle Commitment: Long-term availability guarantees to support your product from prototype through end-of-life
• Quality Assurance: Rigorous inspection and testing protocols to ensure component integrity
• Global Logistics: Efficient worldwide shipping with proper ESD protection and handling

Design Considerations & Best Practices

When integrating the 5SGXMA7K2F35C1WN into your design, consider the following engineering guidelines:

• Power Distribution Network: Implement robust PDN with adequate decoupling capacitors to maintain stable 0.87-0.93V core voltage
• Thermal Management: Design appropriate heatsinking solutions to maintain junction temperature within 0-85°C operating range
• Signal Integrity: Follow Altera's PCB layout guidelines for high-speed I/O routing and impedance control
• Configuration Strategy: Select appropriate configuration mode (JTAG, AS, PS) based on system requirements
• Clock Distribution: Utilize dedicated clock resources and PLLs for optimal timing performance

Related Resources & Product Categories

Explore More FPGAs: Browse our complete FPGAs Field Programmable Gate Array ICs collection for additional Altera Stratix, Cyclone, and Arria families, plus Xilinx Virtex, Kintex, and Artix solutions, and Lattice ECP5 and iCE40 devices.

Shop Premium Components: Visit HQICKEY for our full catalog of memory ICs (DDR4, LPDDR, Flash), microprocessors, microcontrollers, power management ICs, interface components, and analog/mixed-signal devices.

Technical Insights & Application Notes: Read our News & Technical Blog for FPGA design tips, product selection guides, performance comparisons, and the latest industry updates on semiconductor technology.

No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
