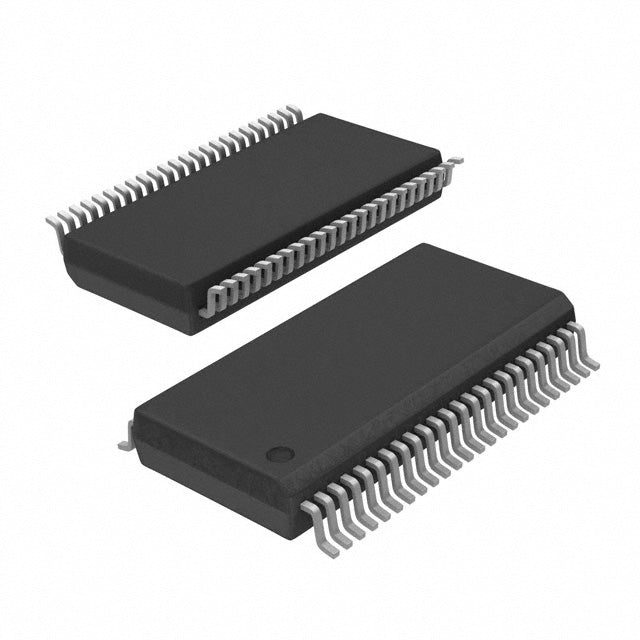

Renesas Electronics Corporation 74FCT162244ETPVG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.89 | $3.89 |
| 15+ | $3.76 | $56.40 |
| 25+ | $3.68 | $92.00 |
| 50+ | $3.48 | $174.00 |
| 100+ | $3.07 | $307.00 |
| N+ | $0.61 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | 74FCT |
| Packaging | Tube | |
| Part Status | Obsolete |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 4 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 48-BSSOP (0.295", 7.50mm Width) |
| Supplier Device Package | 48-SSOP |
| ROHS |  |
The 74FCT162244ETPVG is a high-speed non-inverting buffer from the 74FCT family. It features 4 channels with 3-State outputs, operating from 4.5V to 5.5V. With 24mA source and sink capability, it is designed for high-density bus buffering and signal driving. Packaged in a 48-BSSOP, it is suitable for servers, telecom, and industrial applications.
- 4-Channel Buffer: Handles wide data buses efficiently.
- Wide 4.5V to 5.5V Supply: Compatible with both 5V and slightly lower voltage systems.
- Balanced 24mA Drive: Provides consistent signal strength for both sourcing and sinking.
- 3-State Outputs: Enables safe bus sharing in multi-device systems.
High-Density Bus Buffering
The 74FCT162244ETPVG with 4 channels is ideal for buffering wide data buses (32-bit or 64-bit) in high-performance computing systems.
Memory Module Drivers
Use it to buffer address and control signals to multiple DRAM or SRAM modules, ensuring signal integrity across the memory bus.
Server Motherboards
In server platforms, this buffer can drive signals to multiple peripheral slots, maintaining clean logic levels over longer traces.
Telecommunications Backplanes
For telecom equipment, it buffers data and control signals across backplane connectors, providing reliable communication between line cards.
FPGA Interface Buffering
It can buffer I/O signals between an FPGA and external devices, protecting the FPGA from excessive loads and improving signal quality.
Industrial Control Systems
In industrial controllers, this buffer drives multiple actuator or sensor interfaces, ensuring robust operation in noisy environments.
- Q: What is the logic family of the 74FCT162244ETPVG?
- A: It is from the 74FCT logic family, offering high-speed performance.
- Q: What is the function of this IC?
- A: It is a non-inverting buffer with 4 channels, providing signal amplification.
- Q: What is the output type?
- A: It has 3-State outputs for bus-oriented applications.
- Q: What is the operating voltage range?
- A: It operates from 4.5V to 5.5V, offering flexibility.
- Q: What is the package type?
- A: It is available in a 48-BSSOP (0.295", 7.50mm Width) package.
- Q: What is the output current capability?
- A: It can source and sink 24mA each.
