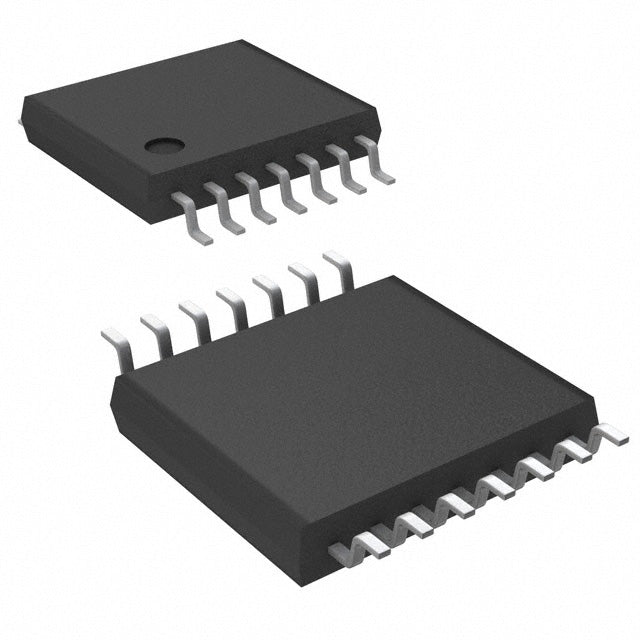

Nexperia USA Inc. 74HCT125PW-Q100J
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.41 | $0.41 |
| 15+ | $0.40 | $6.00 |
| 25+ | $0.39 | $9.75 |
| 50+ | $0.37 | $18.50 |
| 100+ | $0.32 | $32.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nexperia USA Inc. |
| Product Series | 74HCT |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 4 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 6mA, 6mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| ROHS |  |
The 74HCT125PW-Q100J from Nexperia is a quad buffer from the 74HCT logic family. It provides four independent non-inverting buffers with 3-State outputs, ideal for bus isolation and signal buffering. Operating from 4.5V to 5.5V, it delivers 6mA output current per channel. This AEC-Q100 qualified device is designed for automotive and industrial applications. The 14-TSSOP package is compact and suitable for space-constrained PCBs.
- Quad Independent Buffers: Provides four separate buffering channels in a single package, saving board space.
- 3-State Outputs: Enables bus sharing and isolation, improving system flexibility.
- AEC-Q100 Qualified: Suitable for automotive applications with stringent reliability requirements.
- 5V Compatibility: Directly interfaces with legacy 5V logic systems.
5V Bus Isolation
The 74HCT125PW-Q100J provides 3-State buffering for 5V buses, allowing multiple peripherals to be disconnected when not in use.
Driving LED Indicators
With 6mA output current, this buffer can directly drive LEDs with series resistors, simplifying indicator circuits in control panels.
Interfacing 5V Logic to High-Impedance Loads
Use this buffer to drive high-impedance inputs like ADC or op-amp circuits, ensuring stable logic levels without loading the source.
Automotive Body Control Modules
AEC-Q100 qualified, this buffer is ideal for automotive body control modules, buffering switch inputs and control signals.
Industrial Sensor Interfaces
In industrial settings, this buffer conditions signals from sensors, providing clean logic levels to PLC inputs.
Clock Distribution
Use multiple channels to buffer and distribute clock signals to multiple loads, maintaining signal integrity.
- Q: What is the logic family of the 74HCT125PW-Q100J?
- A: It belongs to the 74HCT high-speed CMOS family.
- Q: What is the function of this IC?
- A: It is a quad buffer with non-inverting outputs.
- Q: How many channels does it have?
- A: It has 4 independent channels.
- Q: What is the output type?
- A: It features 3-State outputs for bus isolation.
- Q: What is the operating voltage?
- A: It operates from 4.5V to 5.5V.
- Q: What package is available?
- A: It comes in a 14-TSSOP package.
