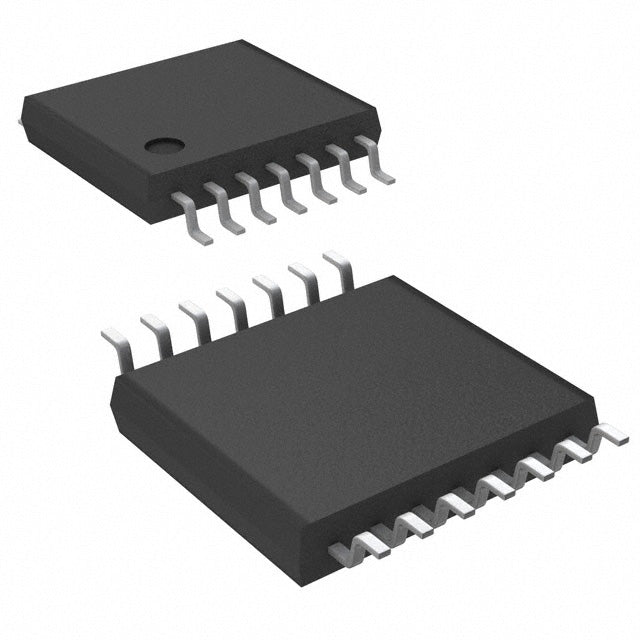

Toshiba Semiconductor and Storage 74LCX07FT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.62 | $0.62 |
| 15+ | $0.60 | $9.00 |
| 25+ | $0.59 | $14.75 |
| 50+ | $0.55 | $27.50 |
| 100+ | $0.49 | $49.00 |
| N+ | $0.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Toshiba Semiconductor and Storage |
| Product Series | 74LCX |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 6 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | Open Drain |
| Current - Output High, Low | -, 32mA |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| ROHS |  |
The 74LCX07FT from Toshiba is a hex non-inverting buffer with open-drain outputs. It operates from 1.65V to 5.5V, making it suitable for low-voltage and mixed-voltage systems. The open-drain outputs allow wired-OR connections and level shifting to higher voltages via external pull-up resistors. Each output can sink 32mA, enabling direct drive of LEDs or relays. The 14-TSSOP package is compact for space-constrained designs. It operates from -40°C to 85°C, suitable for commercial and industrial applications.
- Open-Drain Outputs: Enables wired-OR logic and level shifting to higher voltages.
- Wide 1.65V to 5.5V Supply: Compatible with 1.8V, 2.5V, 3.3V, and 5V systems.
- High Sink Current (32mA): Drives LEDs, relays, and other loads directly.
- Hex Configuration: Six independent buffers in one package, saving board space.
Wired-OR Bus Connections
Open-drain outputs allow multiple 74LCX07FT buffers to be connected to a single pull-up resistor, enabling wired-OR logic for interrupt lines or shared buses.
Level Shifting to Higher Voltages
With open-drain outputs, the pull-up resistor can be connected to a higher voltage (e.g., 5V or 12V), allowing the 3.3V buffer to drive higher-voltage loads.
I2C and SMBus Interfacing
The open-drain outputs are perfect for I2C/SMBus lines, which require open-drain drivers. The 74LCX07FT buffers and isolates bus segments.
Driving LEDs with External Supply
Connect the open-drain output to an LED with a pull-up to a suitable voltage. The 32mA sink current drives LEDs directly without additional transistors.
Power Sequencing Control
Use open-drain outputs to control power supply enable pins. The pull-up ensures a defined high level when the buffer is off, preventing glitches.
Industrial Sensor Multiplexing
In industrial systems, open-drain outputs allow multiple sensors to share a single ADC input via wired-OR, reducing I/O requirements.
- Q: What logic family is the 74LCX07FT?
- A: It belongs to the 74LCX (Low-Voltage CMOS) logic family.
- Q: What is the function of this IC?
- A: It is a hex buffer with non-inverting outputs, designed for open-drain applications.
- Q: How many channels does it have?
- A: It has 6 independent channels.
- Q: What is the output type?
- A: It features Open Drain outputs, allowing wired-OR connections and level shifting.
- Q: What is the voltage range?
- A: It operates from 1.65V to 5.5V, compatible with low-voltage and standard logic.
- Q: What package is available?
- A: It comes in a 14-TSSOP (4.40mm width) package.
