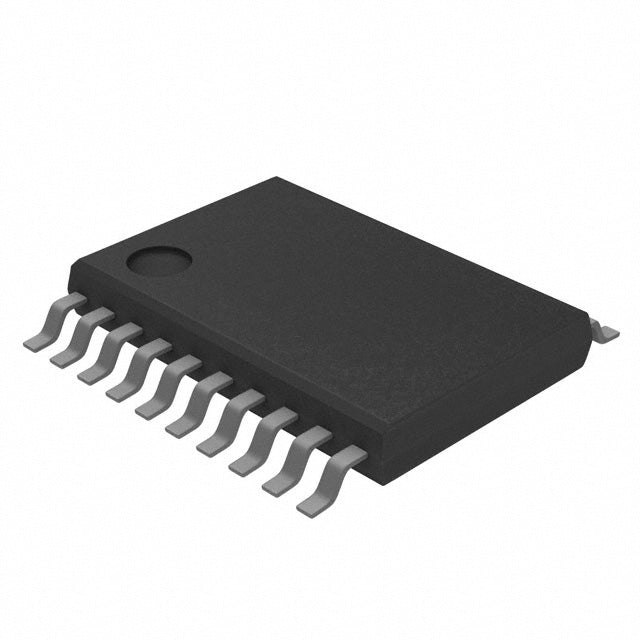

Toshiba Semiconductor and Storage 74LCX244FT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.76 | $0.76 |
| 15+ | $0.74 | $11.10 |
| 25+ | $0.72 | $18.00 |
| 50+ | $0.68 | $34.00 |
| 100+ | $0.60 | $60.00 |
| N+ | $0.12 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Toshiba Semiconductor and Storage |
| Product Series | 74LCX |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| ROHS |  |
The Toshiba 74LCX244FT is a dual non-inverting buffer from the 74LCX logic family, designed for low-voltage operation from 1.65V to 3.6V. It features 3-state outputs with 24mA drive capability, making it suitable for bus-oriented applications. Housed in a 20-TSSOP package, this buffer is ideal for memory interfacing, level shifting, and signal buffering in portable and industrial electronics.
- Wide Low-Voltage Range (1.65V-3.6V): Compatible with 1.8V and 3.3V logic families.
- Dual-Channel 3-State Outputs: Provides flexibility for bus isolation and multiplexing.
- 24mA Drive Capability: Ensures robust signal integrity for moderate loads.
- Low Power Consumption: Ideal for battery-operated devices.
Low-Voltage Bus Buffering
The 74LCX244FT is ideal for buffering address and data buses in 1.8V to 3.3V systems, providing 24mA drive for reliable signal transmission.
Mixed-Voltage Level Shifting
Its wide supply range allows it to interface between 1.8V and 3.3V logic, making it a flexible solution for multi-voltage boards.
Memory Module Buffering
Use it to buffer control and data lines in DDR memory modules, ensuring signal integrity at high speeds.
Portable Consumer Electronics
Low power consumption and small footprint make it suitable for smartphones, tablets, and other battery-powered devices.
Industrial Sensor Interfaces
Buffers signals from sensors to a central controller, providing clean logic levels and protecting sensitive inputs.
FPGA I/O Expansion
Drive multiple loads from an FPGA's limited I/O pins, increasing fan-out and improving signal quality.
- Q: What is the logic family of the 74LCX244FT?
- A: It belongs to the 74LCX family from Toshiba, known for low-voltage, high-speed operation.
- Q: What is the function of this IC?
- A: It is a dual-channel, non-inverting buffer with 3-state outputs.
- Q: How many channels does it have?
- A: It has 2 channels.
- Q: What is the output type?
- A: The output is 3-State, allowing for bus sharing and isolation.
- Q: What is the operating voltage range?
- A: It operates from 1.65V to 3.6V, supporting both 1.8V and 3.3V logic.
- Q: What package is available?
- A: It is available in a 20-TSSOP package.
