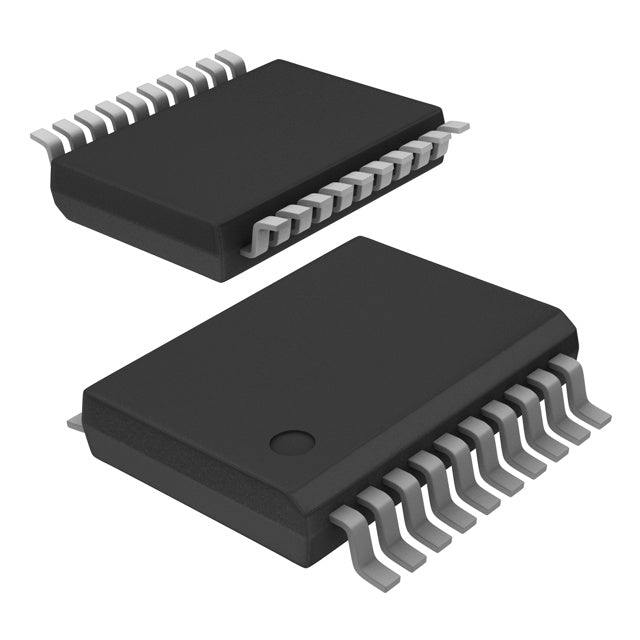

NXP USA Inc. 74LVT245DB,112
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.36 | $1.36 |
| 15+ | $0.31 | $4.65 |
| 25+ | $0.31 | $7.75 |
| 50+ | $0.29 | $14.50 |
| 100+ | $0.26 | $26.00 |
| N+ | $0.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | 74LVT |
| Packaging | Tube | |
| Part Status | Active |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 32mA, 64mA |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP |
The 74LVT245DB,112 is an 8-bit non-inverting transceiver from the 74LVT logic family, designed for high-current 3.3V bus applications. It features 3-state outputs and operates from 2.7V to 3.6V. With a robust 64mA sink and 32mA source capability, it can drive heavily loaded buses with ease. The 20-SSOP package offers a compact footprint for space-constrained designs. This transceiver is ideal for backplane communication, memory interfacing, and industrial control systems where high drive strength is essential.
- High 64mA Sink / 32mA Source Drive: Ensures reliable operation on heavily loaded buses and long traces.
- BiCMOS Technology: Combines low power with high speed, ideal for performance-critical applications.
- 3.3V Optimized Operation: Matches modern low-voltage logic while providing TTL-compatible drive levels.
- Compact 20-SSOP Package: Saves board space without sacrificing performance.
High-Current Bus Driving
With 64mA sink capability, this transceiver can drive heavily loaded buses with multiple devices, ensuring reliable logic levels in complex digital systems.
3.3V Backplane Communication
In telecom and networking equipment, this device is ideal for driving signals across a backplane, providing the high current needed for long trace lengths.
Memory Module Interfacing
For DDR memory modules, this transceiver buffers address and control signals, ensuring clean, high-speed communication between the memory controller and DRAM.
Mixed 3.3V/5V System Interfacing
While operating at 3.3V, the high drive current allows it to interface with 5V TTL logic inputs, providing a level-shifting function without additional components.
Industrial Control I/O Modules
In PLC systems, this transceiver can buffer signals between the main controller and I/O modules, handling the high capacitive loads of long cable runs.
Server Motherboard Bus Buffering
In server platforms, it buffers the PCI or memory bus, ensuring signal integrity across multiple slots and connectors.
- Q: What is the logic family of the 74LVT245DB,112?
- A: It belongs to the 74LVT logic family, which is a BiCMOS series designed for low-voltage, high-current bus interfacing.
- Q: What is the function of this IC?
- A: It is an 8-bit non-inverting transceiver, enabling bidirectional data transfer between two buses.
- Q: What is the output type?
- A: The outputs are 3-State, allowing for bus isolation and direction control.
- Q: What is the operating voltage range?
- A: It operates from 2.7V to 3.6V, optimized for 3.3V systems.
- Q: What is the output current capability?
- A: It can sink 64mA and source 32mA, providing strong drive for heavily loaded buses.
- Q: What package is available?
- A: It comes in a 20-SSOP package with a 5.30mm body width, suitable for compact designs.
