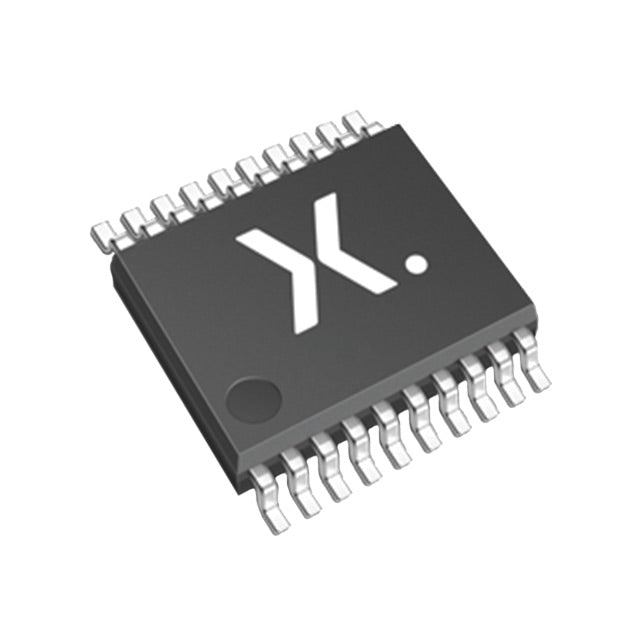

Nexperia USA Inc. 74LVT245PW,118
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.52 | $0.52 |
| 15+ | $0.51 | $7.65 |
| 25+ | $0.50 | $12.50 |
| 50+ | $0.47 | $23.50 |
| 100+ | $0.41 | $41.00 |
| N+ | $0.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nexperia USA Inc. |
| Product Series | 74LVT |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 32mA, 64mA |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
The 74LVT245PW,118 is an 8-bit non-inverting transceiver from the 74LVT family, designed for bidirectional data flow. It operates from 2.7V to 3.6V, optimized for 3.3V logic. The 3-State outputs allow connection to shared buses, while the 64mA sink current provides strong drive capability. Housed in a 20-pin TSSOP package, it is suitable for high-density PCB designs. Typical applications include bus interfacing, level shifting, and data multiplexing in computing and telecom systems.
- High Sink Current (64mA): Drives heavy bus loads and long traces without signal degradation.
- 3-State Outputs: Enables multiple devices to share the same bus safely.
- 5V Tolerant I/O: Interfaces with legacy 5V logic without external level shifters.
- Bidirectional Operation: Reduces component count by handling data flow in both directions.
Bidirectional Bus Interfacing in Servers
With 3-State outputs and 64mA sink capability, the 74LVT245PW,118 is ideal for connecting microprocessors to memory or peripheral buses in high-speed computing systems.
Level Shifting Between 3.3V and 5V Systems
Although powered at 3.3V, its 5V tolerant I/O allows direct connection to legacy 5V logic, simplifying mixed-voltage designs.
Data Multiplexing in Telecom Equipment
The transceiver's direction control (DIR) and output enable (OE) pins allow efficient data routing in networking switches and routers.
Driving High-Capacitance Backplanes
The high sink current (64mA) ensures reliable signal transmission over long, high-capacitance backplane traces in industrial chassis.
Hot-Swap and Live Insertion
The 3-State outputs prevent bus contention during power-up or card insertion, making it suitable for redundant power supplies.
Automotive Infotainment Buses
Its -40°C to 85°C range and robust drive make it suitable for CAN or LIN bus buffering in vehicle infotainment systems.
- Q: What is the logic family of the 74LVT245PW,118?
- A: It belongs to the 74LVT family, which is designed for low-voltage, high-speed operation with 5V tolerant I/O.
- Q: What is the function of this IC?
- A: It is a non-inverting transceiver with 8 channels (bidirectional), allowing data flow in either direction.
- Q: What is the output type?
- A: The outputs are 3-State, enabling connection to shared buses with high-impedance control.
- Q: What is the operating voltage range?
- A: It operates from 2.7V to 3.6V, optimized for 3.3V systems.
- Q: What is the package type?
- A: It comes in a 20-pin TSSOP (0.173", 4.40mm width) package.
- Q: What is the output current capability?
- A: It can source 32mA and sink 64mA, providing strong drive for bus lines.
