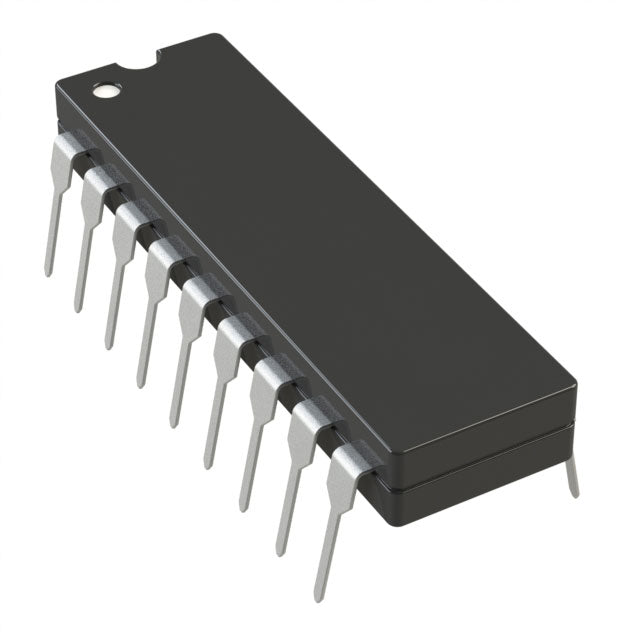

Analog Devices Inc. AD573JNZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $81.58 | $81.58 |
| 15+ | $79.00 | $1,185.00 |
| 25+ | $77.28 | $1,932.00 |
| 50+ | $72.99 | $3,649.50 |
| 100+ | $64.40 | $6,440.00 |
| N+ | $12.88 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | +4.5V ~ 7V, -12V ~ 16.5V |
| Voltage - Supply, Digital | +4.5V ~ 7V, -12V ~ 16.5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| ROHS |  |
The AD573JNZ from Analog Devices is a 10-bit analog-to-digital converter featuring a single input channel and a parallel interface. It utilizes a sample-and-hold (S/H-ADC) architecture with an internal reference, simplifying design. Operating over a 0°C to 70°C range, it is housed in a 20-DIP package, making it suitable for industrial control, data acquisition, and embedded applications.
- Integrated Reference: The internal reference reduces external component count and simplifies circuit design.
- Parallel Output: Provides fast and straightforward data reading for microcontrollers and DSPs.
- Through-Hole Package: The 20-DIP package is easy to prototype and solder, ideal for legacy and new designs.
- Reliable Performance: Analog Devices' proven ADC architecture ensures consistent and accurate conversions.
Industrial Process Control
The 10-bit resolution and parallel interface make the AD573JNZ suitable for industrial process control loops where precise monitoring of analog signals like temperature and pressure is required.
Data Acquisition Systems
With its internal reference and single-channel input, this ADC can be used in data acquisition systems to digitize sensor outputs for further processing and analysis.
Test and Measurement Equipment
The parallel output and S/H architecture enable fast and accurate readings in benchtop multimeters and other test equipment.
Embedded Systems
The 20-DIP package is ideal for through-hole PCB designs in embedded systems requiring a simple, reliable analog-to-digital conversion solution.
Battery-Powered Devices
Its low pin count and straightforward parallel interface help reduce power consumption in portable devices that need to monitor analog signals.
- Q: What is the resolution of the AD573JNZ ADC?
- A: The AD573JNZ is a 10-bit analog-to-digital converter.
- Q: How many channels does the AD573JNZ have?
- A: It has 1 input channel.
- Q: What interface does the AD573JNZ use?
- A: It uses a parallel interface for data output.
- Q: What is the architecture of the AD573JNZ?
- A: It uses a S/H-ADC (sample-and-hold ADC) architecture.
- Q: What is the operating temperature range?
- A: It operates from 0°C to 70°C.
- Q: What package is the AD573JNZ available in?
- A: It comes in a 20-DIP (0.300", 7.62mm) package.
