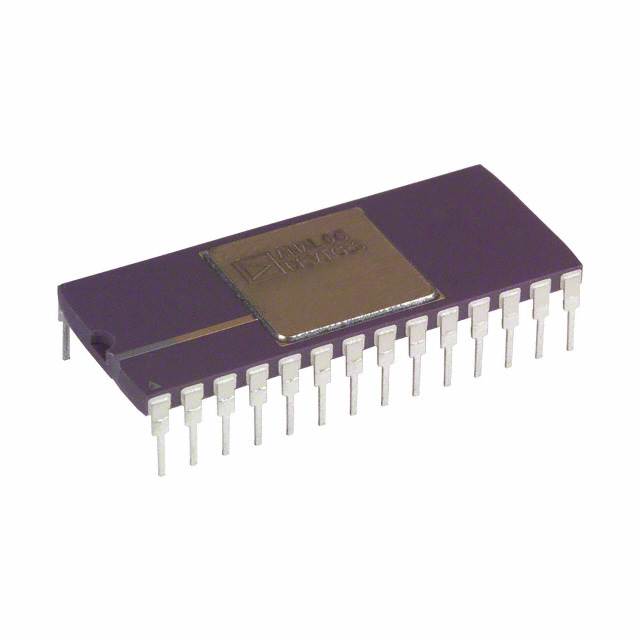

Analog Devices Inc. AD574AJD
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $90.70 | $90.70 |
| 15+ | $87.83 | $1,317.45 |
| 25+ | $85.92 | $2,148.00 |
| 50+ | $81.15 | $4,057.50 |
| 100+ | $71.60 | $7,160.00 |
| N+ | $14.32 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
| ROHS |  |
The AD574AJD from Analog Devices is a 12-bit analog-to-digital converter designed for high-accuracy signal digitization. Featuring a single input channel and a parallel interface, this ADC delivers fast and efficient data transfer to microprocessors. With both external and internal reference options, it offers flexibility in system design. Housed in a robust 28-CDIP package, the AD574AJD operates reliably across a 0°C to 70°C temperature range, making it suitable for industrial control, test equipment, and data acquisition systems.
- High Precision: 12-bit resolution provides fine granularity for accurate analog-to-digital conversion in measurement systems.
- Flexible Reference: Supports both external and internal references, allowing designers to optimize for accuracy or simplicity.
- Fast Parallel Output: The parallel interface enables high-speed data transfer to host processors, reducing CPU overhead.
- Rugged Package: The 28-CDIP ceramic package ensures durability and hermetic sealing for demanding environments.
Industrial Data Acquisition Systems
The AD574AJD's 12-bit resolution and parallel interface make it ideal for legacy industrial data acquisition systems where direct connection to microprocessors or DSPs is required. Its internal reference simplifies design, while the external reference option allows for ratiometric measurements.
Precision Sensor Digitization
For sensor applications requiring 12-bit accuracy, the AD574AJD provides a reliable conversion path. The single-channel input is well-suited for digitizing a single analog sensor output, such as a temperature or pressure transducer, with the parallel output enabling fast data transfer.
Test and Measurement Equipment
In benchtop instruments like digital multimeters or data loggers, the AD574AJD offers a proven, stable conversion core. Its wide 28-pin CDIP package is suitable for through-hole PCB designs, ensuring robust mechanical mounting in laboratory environments.
Embedded Control Systems
When integrating analog feedback into an embedded controller, the AD574AJD's parallel interface allows for straightforward memory-mapped I/O. The 0°C to 70°C temperature range covers most commercial and industrial control cabinets.
Avionics and Military Legacy Systems
Given its CDIP ceramic package, the AD574AJD is suitable for upgrading or maintaining avionics and military systems that require hermetically sealed components. The 12-bit resolution meets the needs of many flight control and navigation sensors.
- Q: What is the resolution of the AD574AJD?
- A: The AD574AJD is a 12-bit analog-to-digital converter.
- Q: How many channels does the AD574AJD have?
- A: It has a single input channel.
- Q: What interface does the AD574AJD use?
- A: It uses a parallel interface for data output.
- Q: What is the architecture of the AD574AJD?
- A: It uses an ADC architecture with external or internal reference options.
- Q: What is the operating temperature range?
- A: The AD574AJD operates from 0°C to 70°C.
- Q: What package is the AD574AJD available in?
- A: It comes in a 28-CDIP (0.600", 15.24mm) package.
