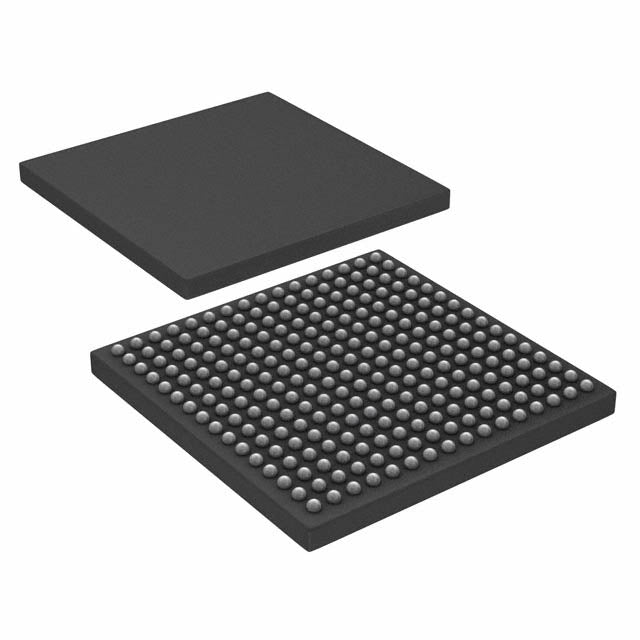

Analog Devices Inc. AD6654CBCZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $561.00 | $561.00 |
| 15+ | $129.03 | $1,935.45 |
| 25+ | $126.23 | $3,155.75 |
| 50+ | $119.21 | $5,960.50 |
| 100+ | $105.19 | $10,519.00 |
| N+ | $21.04 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tray |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 92.16M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 256-BGA, CSPBGA |
| Supplier Device Package | 256-CSPBGA (17x17) |
| ROHS |  |
The AD6654CBCZ is a high-performance 14-bit analog-to-digital converter from Analog Devices, designed for demanding applications requiring high-speed signal conversion. It offers a sampling rate of 92.16 MSPS and a single input channel, making it suitable for a wide range of data acquisition and signal processing tasks. The device features a parallel interface and an internal reference, simplifying system design. Its S/H-ADC architecture ensures accurate sampling of high-frequency signals. This ADC is commonly used in communications, radar, medical imaging, and industrial automation systems.
- High-Speed Performance: 92.16 MSPS sampling rate enables digitization of fast signals, ideal for high-bandwidth applications.
- High Resolution: 14-bit resolution provides fine granularity, ensuring accurate representation of analog signals.
- Integrated Reference: Internal reference simplifies design and reduces external component count.
- Robust Packaging: 256-BGA package supports high-density integration and efficient thermal management.
High-Speed Data Acquisition Systems
The 14-bit resolution and 92.16 MSPS sampling rate make the AD6654CBCZ ideal for high-speed data acquisition systems, ensuring accurate capture of fast transient signals.
Wireless and Communications Infrastructure
With its high sampling rate and internal reference, this ADC is well-suited for IF sampling in wireless base stations and software-defined radios, enabling direct digitization of intermediate frequencies.
Radar and Sonar Signal Processing
The high dynamic performance of the AD6654CBCZ supports radar and sonar systems, where precise digitization of wideband signals is critical for target detection and imaging.
Medical Imaging Equipment
In medical imaging modalities like ultrasound and MRI, the ADC's high speed and resolution help produce high-fidelity images by accurately digitizing analog sensor outputs.
Test and Measurement Instruments
For oscilloscopes and spectrum analyzers, the AD6654CBCZ provides the necessary bandwidth and resolution to capture and analyze complex waveforms with high precision.
Industrial Automation and Control
In industrial settings, this ADC can be used in high-speed control loops and vibration monitoring systems, where fast and accurate signal conversion is essential for real-time feedback.
- Q: What is the resolution of the AD6654CBCZ?
- A: The AD6654CBCZ is a 14-bit analog-to-digital converter.
- Q: What is the sampling rate of this ADC?
- A: It supports a sampling rate of 92.16 MSPS (Mega Samples Per Second).
- Q: How many input channels does the AD6654CBCZ have?
- A: It features a single input channel.
- Q: What interface does this ADC use?
- A: It uses a parallel interface for data output.
- Q: What is the architecture of the AD6654CBCZ?
- A: It uses a Sample-and-Hold (S/H) ADC architecture.
- Q: What is the package type?
- A: It comes in a 256-BGA or CSPBGA package.
