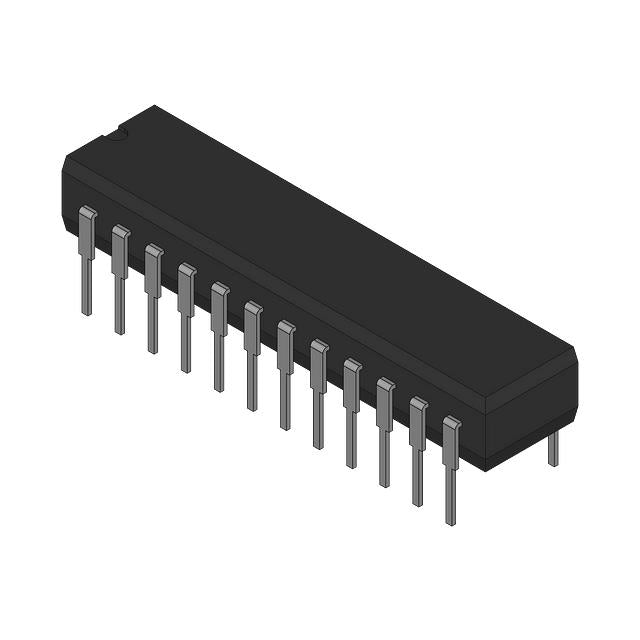

Analog Devices Inc. AD671SD-500
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1,068.92 | $1,068.92 |
| 15+ | $245.85 | $3,687.75 |
| 25+ | $240.51 | $6,012.75 |
| 50+ | $227.15 | $11,357.50 |
| 100+ | $200.42 | $20,042.00 |
| N+ | $40.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | AD671 |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 2M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | - |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | - |
| Architecture | Flash |
| Reference Type | External |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 24-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 24-CDIP |
The AD671SD-500 is a 12-bit analog-to-digital converter from Analog Devices, offering a sampling rate of 2 MSPS. It features a single input channel and a parallel interface, making it easy to connect to microprocessors and DSPs. Designed for harsh environments, it operates over the full military temperature range of -55°C to 125°C and is housed in a 24-CDIP package. This ADC is ideal for military, industrial, and high-reliability applications.
- Military Temperature Range: Operates from -55°C to 125°C, ensuring reliability in extreme conditions.
- 12-Bit Precision: Provides high-resolution conversion for accurate measurement and control.
- Parallel Output: Enables fast data transfer to host processors.
- Hermetic Package: The CDIP package offers protection against moisture and contaminants.
Military and Aerospace Systems
The AD671SD-500's wide temperature range (-55°C to 125°C) and 12-bit resolution make it suitable for military avionics and aerospace data acquisition.
Industrial Process Control
With its 2 MSPS sampling rate, this ADC can be used in industrial automation for precise monitoring and control of analog signals.
Medical Instrumentation
The 12-bit resolution is adequate for medical devices such as patient monitors and diagnostic equipment requiring accurate signal conversion.
Scientific Data Acquisition
Its parallel interface and robust design make it ideal for laboratory and scientific data acquisition systems.
Automotive Sensor Interfaces
The extended temperature range allows for use in automotive sensor applications, digitizing signals from temperature, pressure, and position sensors.
High-Reliability Applications
The hermetic CDIP package and military temperature rating make it suitable for high-reliability applications in harsh environments.
- Q: What is the resolution of the AD671SD-500?
- A: The AD671SD-500 is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate of the AD671SD-500?
- A: It has a maximum sampling rate of 2 MSPS (2 million samples per second).
- Q: How many channels does this ADC have?
- A: It has a single (1) input channel.
- Q: What interface does the AD671SD-500 use?
- A: It uses a parallel interface for data output.
- Q: What is the operating temperature range?
- A: It operates over the military temperature range of -55°C to 125°C.
- Q: What package is the AD671SD-500 available in?
- A: It is available in a 24-CDIP (0.300", 7.62mm) package.
