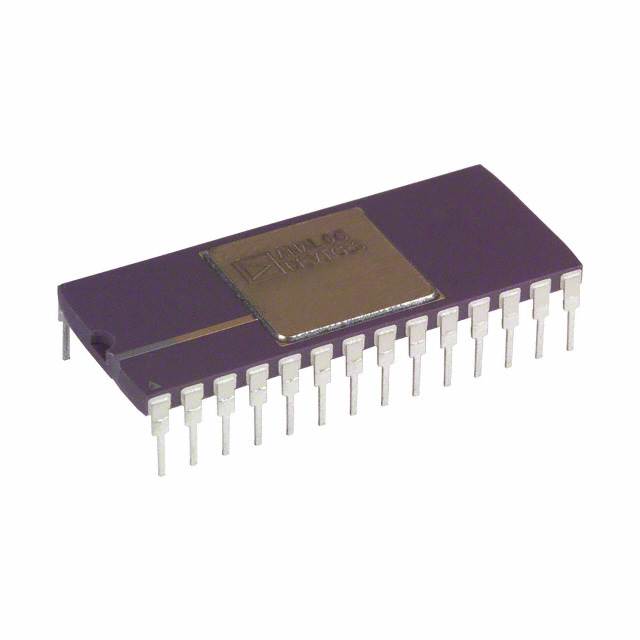

Analog Devices Inc. AD674BAD
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $319.60 | $319.60 |
| 15+ | $73.51 | $1,102.65 |
| 25+ | $71.91 | $1,797.75 |
| 50+ | $67.92 | $3,396.00 |
| 100+ | $59.93 | $5,993.00 |
| N+ | $11.99 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 2 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
| ROHS |  |
The AD674BAD is a 12-bit analog-to-digital converter from Analog Devices, designed for high-accuracy parallel data conversion. It features two input channels and supports both external and internal references, offering flexibility for diverse applications. The parallel interface ensures fast data transfer, making it suitable for industrial process control, medical imaging, and aerospace instrumentation. Housed in a robust 28-CDIP ceramic package, it operates reliably across -40°C to 85°C, ideal for demanding environments.
- Dual-Channel Input: Two multiplexed channels allow simultaneous sampling of multiple signals, reducing system complexity and cost.
- Flexible Reference: External or internal reference options enable optimization for accuracy or simplicity in various designs.
- Fast Parallel Output: Parallel interface provides high-speed data transfer, ideal for real-time control and DSP applications.
- Rugged Ceramic Package: 28-CDIP package offers superior mechanical and thermal stability for military and industrial use.
- Wide Temperature Operation: Rated -40°C to 85°C, ensuring dependable performance in extreme environments.
Multi-Sensor Data Acquisition
The AD674BAD's dual-channel input allows simultaneous sampling of two related signals, such as voltage and current in power monitoring systems, simplifying synchronization and reducing component count.
Industrial Process Control
With 12-bit resolution and parallel output, this ADC is ideal for PLC analog input modules, converting 4-20mA loop signals from transmitters with high accuracy in harsh factory environments.
Aerospace & Defense Instrumentation
The rugged 28-CDIP ceramic package and -40°C to 85°C temperature range make it suitable for military-grade avionics and test equipment requiring reliable performance under extreme conditions.
Medical Imaging Systems
In ultrasound and X-ray equipment, the AD674BAD digitizes analog sensor arrays with 12-bit precision, contributing to clearer image reconstruction and diagnostic accuracy.
Energy Management Systems
For smart grid and substation automation, this ADC converts power quality signals with external reference support, enabling precise harmonic analysis and energy metering.
Laboratory Test Equipment
Benchtop multimeters and spectrum analyzers benefit from the AD674BAD's parallel interface and dual channels, allowing fast, simultaneous measurement of multiple test points.
- Q: What is the AD674BAD ADC?
- A: The AD674BAD is a 12-bit parallel-output analog-to-digital converter with 2 input channels and flexible reference options.
- Q: What is the resolution of the AD674BAD?
- A: It provides 12-bit resolution, offering 4096 quantization levels for accurate signal representation.
- Q: How many channels does the AD674BAD support?
- A: It has 2 analog input channels, enabling multiplexed conversion of two separate signals.
- Q: What interface does the AD674BAD use?
- A: It uses a parallel digital interface for high-speed data transfer to microprocessors or DSPs.
- Q: What reference options are available?
- A: It supports both external and internal references, providing design flexibility for various accuracy requirements.
- Q: What package is the AD674BAD offered in?
- A: It is available in a 28-CDIP (0.600", 15.24mm) ceramic dual-inline package.
