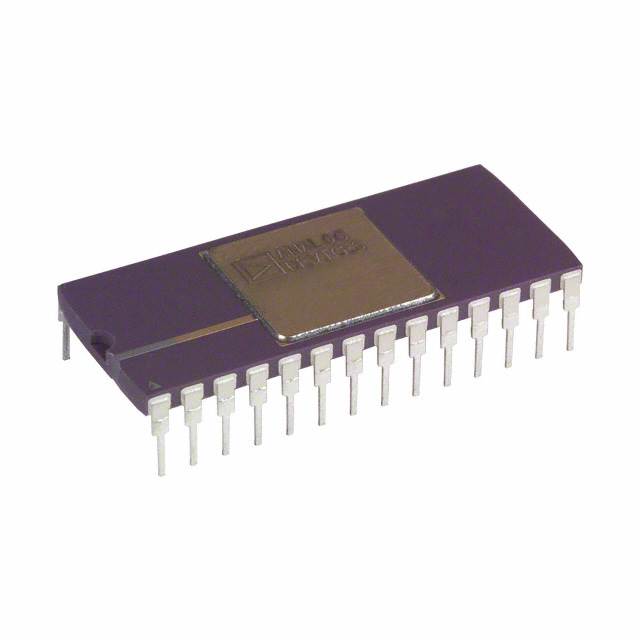

Analog Devices Inc. AD676KDZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $142.48 | $142.48 |
| 15+ | $137.98 | $2,069.70 |
| 25+ | $134.98 | $3,374.50 |
| 50+ | $127.48 | $6,374.00 |
| 100+ | $112.49 | $11,249.00 |
| N+ | $22.50 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | ±12V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
| ROHS |  |
The AD676KDZ is a high-precision, 16-bit analog-to-digital converter from Analog Devices. It offers a sampling rate of 100 kSPS and a parallel interface, making it a reliable choice for precision measurement applications. With an external reference and S/H-ADC architecture, it delivers excellent accuracy and stability. This ADC is well-suited for industrial, medical, and scientific applications where high-resolution data conversion is required.
- High Precision: 16-bit resolution provides exceptional accuracy for demanding measurement applications.
- Stable Performance: Designed for reliable operation over a 0°C to 70°C temperature range.
- Robust Package: The ceramic DIP (CDIP) package offers durability and long-term reliability.
- External Reference Support: Allows for precise control of the voltage reference to optimize system performance.
High-Precision Data Acquisition
The 16-bit resolution of the AD676KDZ makes it ideal for high-precision data acquisition systems, such as those used in scientific research and laboratory instrumentation.
Industrial Weighing Systems
Its high accuracy and stability are perfect for industrial weighing and force measurement systems, ensuring precise and reliable readings.
Medical Instrumentation
In medical devices like patient monitors and diagnostic equipment, the AD676KDZ provides the accuracy needed for critical measurements.
Seismic Monitoring
The high resolution is beneficial for seismic data acquisition, where detecting small signal variations is essential for analysis.
Audio Test Equipment
With its 16-bit precision, this ADC is suitable for high-end audio test and measurement equipment, ensuring accurate signal analysis.
- Q: What is the resolution of the AD676KDZ?
- A: The AD676KDZ is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate of this ADC?
- A: It supports a sampling rate of 100 kSPS (100k samples per second).
- Q: How many channels does the AD676KDZ have?
- A: This ADC features 1 input channel.
- Q: What interface does the AD676KDZ use?
- A: It uses a Parallel interface for data output.
- Q: What is the architecture of this ADC?
- A: It utilizes a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type for the AD676KDZ?
- A: It comes in a 28-CDIP (0.600", 15.24mm) package.
