Analog Devices Inc. AD677AD
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $129.77 | $129.77 |
| 15+ | $125.67 | $1,885.05 |
| 25+ | $122.94 | $3,073.50 |
| 50+ | $116.11 | $5,805.50 |
| 100+ | $102.45 | $10,245.00 |
| N+ | $20.49 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Serial |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | ±12V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP |
| ROHS |  |

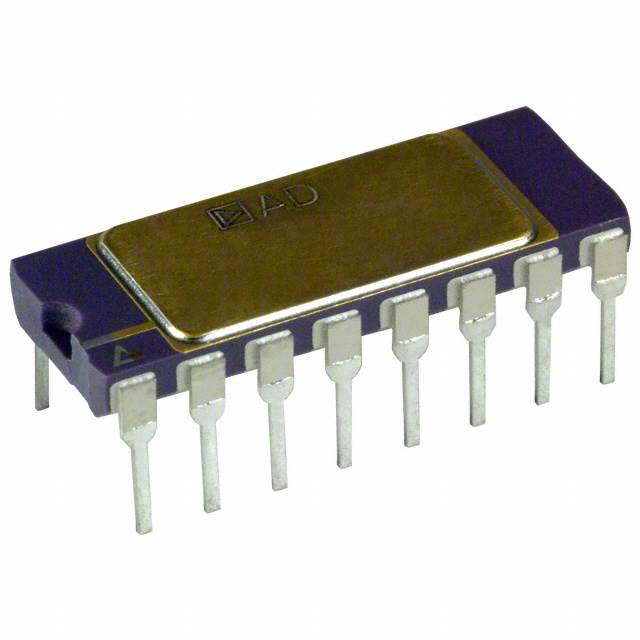

The AD677AD from Analog Devices is a high-performance 16-bit analog-to-digital converter (ADC) designed for precision data acquisition applications. It offers a sampling rate of 100k SPS and features a single input channel with a serial interface for easy integration with microcontrollers and DSPs. Its S/H-ADC architecture ensures accurate signal sampling, while the external reference allows for flexible voltage scaling. Housed in a robust 16-CDIP package, the AD677AD operates over an industrial temperature range, making it suitable for demanding environments.
- High Resolution: 16-bit resolution provides exceptional detail and accuracy for demanding measurement applications.
- Reliable Performance: S/H-ADC architecture ensures accurate sampling and conversion of analog signals.
- Simple Integration: Serial interface reduces pin count and simplifies connection to digital systems.
- Wide Temperature Range: Operates from -40°C to 85°C, suitable for industrial and automotive environments.
Precision Sensor Digitization
The AD677AD's 16-bit resolution and 100k SPS sampling rate make it ideal for digitizing precision analog sensors such as strain gauges and load cells, ensuring high-fidelity signal conversion for accurate weight and force measurements.
Industrial Data Acquisition Systems
With its serial interface and 100k SPS throughput, the AD677AD is well-suited for industrial data acquisition systems where multiple sensors are multiplexed into a single ADC, simplifying system design and reducing wiring complexity.
Medical Instrumentation
The high resolution of the AD677AD enables precise digitization of biomedical signals like ECG and EEG, where fine signal details are critical for accurate diagnosis and monitoring in medical instrumentation.
Automotive Sensor Interfaces
Operating over a -40°C to 85°C temperature range, the AD677AD is suitable for automotive sensor applications, converting signals from temperature, pressure, and position sensors with high accuracy in harsh environments.
Laboratory Test Equipment
The 16-bit performance and serial output of the AD677AD make it a reliable choice for laboratory test equipment such as digital multimeters and precision data loggers, providing accurate and stable measurements.
- Q: What is the resolution of the AD677AD ADC?
- A: The AD677AD is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate of the AD677AD?
- A: It has a sampling rate of 100k SPS (samples per second).
- Q: How many input channels does the AD677AD have?
- A: It features a single (1) input channel.
- Q: What interface does the AD677AD use?
- A: It uses a Serial interface for data output.
- Q: What is the architecture of the AD677AD?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type for the AD677AD?
- A: It comes in a 16-CDIP (0.300", 7.62mm) package.
