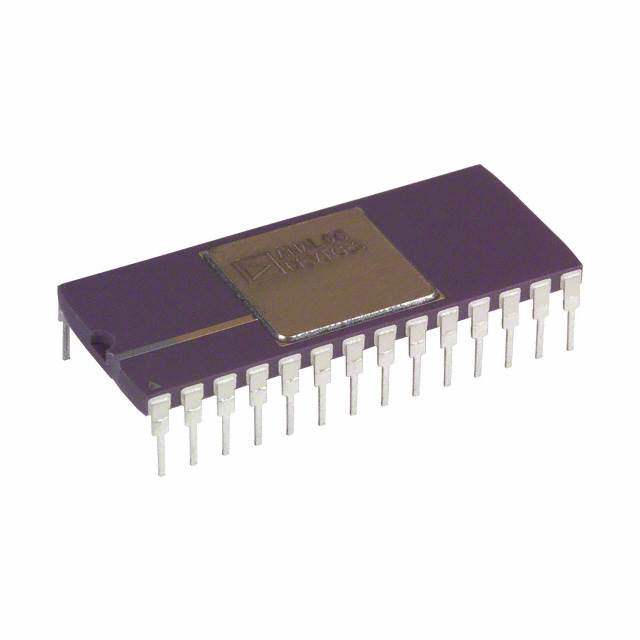

Analog Devices Inc. AD678JD
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $547.75 | $547.75 |
| 15+ | $125.98 | $1,889.70 |
| 25+ | $123.25 | $3,081.25 |
| 50+ | $116.40 | $5,820.00 |
| 100+ | $102.71 | $10,271.00 |
| N+ | $20.54 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 200k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Flash |
| Reference Type | Internal |
| Voltage - Supply, Analog | ±12V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
| ROHS |  |
The AD678JD is a 12-bit, single-channel analog-to-digital converter (ADC) from Analog Devices, offering a sampling rate of 200 kSPS. It features a sample-and-hold architecture and a parallel interface for easy connection to digital systems. Packaged in a 28-lead CDIP, this ADC is designed for a wide range of applications including industrial process control, motor control, and test and measurement equipment.
- Reliable 12-Bit Performance: Provides good resolution for a wide range of industrial and instrumentation applications.
- 200 kSPS Sampling Rate: Offers sufficient speed for real-time control and data acquisition in many systems.
- Parallel Interface: Simplifies integration with microprocessors and DSPs, enabling fast data transfer.
- Sample-and-Hold Architecture: Ensures accurate conversion of dynamic signals by stabilizing the input during conversion.
Industrial Process Control
The AD678JD's 12-bit resolution and 200 kSPS sampling rate make it suitable for industrial process control systems, providing accurate digitization of sensor signals for monitoring and control loops.
Motor Control Systems
In motor control applications, this ADC can digitize current and voltage feedback signals with sufficient speed and resolution for precise motor control in industrial drives.
Data Acquisition for Test & Measurement
For general-purpose test and measurement equipment, the AD678JD offers a reliable and cost-effective solution for digitizing analog signals in benchtop instruments.
Automotive Sensor Interfaces
With its 0°C to 70°C temperature range, the AD678JD can be used in automotive test systems and sensor interfaces for engine control and diagnostics.
Robotics and Motion Control
The ADC's speed and resolution are well-suited for robotics applications, where precise position and velocity feedback from encoders and resolvers is required.
- Q: What is the resolution of the AD678JD?
- A: It is a 12-bit ADC.
- Q: What is the sampling rate?
- A: The sampling rate is 200 kSPS (200k SPS).
- Q: How many channels does it have?
- A: It has a single channel.
- Q: What interface does it use?
- A: It uses a parallel interface.
- Q: What is the architecture?
- A: It uses a S/H-ADC (Sample-and-Hold) architecture.
- Q: What is the package type?
- A: It comes in a 28-CDIP package.
