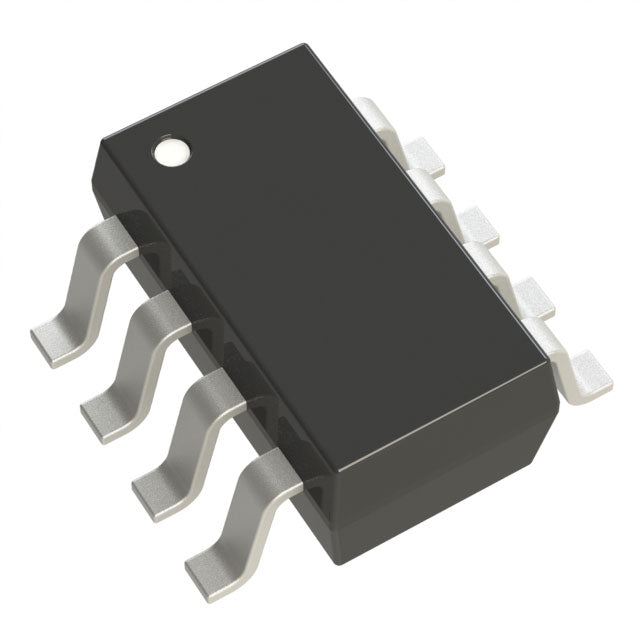

Analog Devices Inc. AD7274BUJZ-REEL7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.53 | $14.53 |
| 15+ | $14.07 | $211.05 |
| 25+ | $13.76 | $344.00 |
| 50+ | $13.00 | $650.00 |
| 100+ | $11.47 | $1,147.00 |
| N+ | $2.29 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 3M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI, DSP |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.35V ~ 3.6V |
| Voltage - Supply, Digital | 2.35V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 |
| Supplier Device Package | TSOT-23-8 |
| ROHS |  |
The AD7274BUJZ-REEL7 is a high-speed 12-bit analog-to-digital converter from Analog Devices Inc. With a sampling rate of 3M SPS and a single input channel, it delivers exceptional performance for demanding applications. Its sample-and-hold architecture and SPI/DSP-compatible interface ensure easy integration with digital signal processors and microcontrollers. Housed in a compact SOT-23-8 package, it operates over a wide temperature range, making it suitable for automotive, industrial, and portable applications.
- Ultra-Fast Sampling: 3M SPS enables capture of high-frequency signals with minimal latency.
- Wide Temperature Range: -40°C to 125°C ensures reliable operation in harsh automotive and industrial environments.
- Compact Size: TSOT-23-8 package is ideal for space-limited PCB designs.
- Versatile Interface: SPI and DSP compatibility simplifies connection to a wide range of processors.
High-Speed Data Acquisition
The 3M SPS sampling rate makes the AD7274BUJZ-REEL7 ideal for high-speed data acquisition systems in test and measurement equipment, capturing fast transient signals accurately.
Automotive Sensor Interfaces
With an extended temperature range of -40°C to 125°C, this ADC is perfect for automotive applications such as engine control units and battery management systems, converting sensor outputs reliably.
Portable Instrumentation
The small TSOT-23-8 package and low power consumption enable compact, battery-operated handheld devices like digital multimeters and oscilloscope probes.
Industrial Process Control
In industrial environments, the fast sampling and SPI interface allow for real-time monitoring of process variables, improving control loop responsiveness.
Communication Systems
The DSP-compatible interface facilitates integration into base stations and software-defined radios for digitizing intermediate frequency signals.
- Q: What is the resolution of the AD7274BUJZ-REEL7?
- A: It is a 12-bit analog-to-digital converter.
- Q: What is the maximum sampling rate?
- A: The sampling rate is 3M SPS (3 million samples per second).
- Q: How many channels does it have?
- A: It has a single (1) input channel.
- Q: What interfaces are supported?
- A: It supports SPI and DSP-compatible serial interfaces.
- Q: What is the architecture?
- A: It uses a sample-and-hold (S/H) ADC architecture.
- Q: What is the temperature range and package?
- A: It operates from -40°C to 125°C and is available in a SOT-23-8 Thin/TSOT-23-8 package.
