Analog Devices Inc. AD7400AYRWZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 35.77 | Dhs. 35.77 |
| 15+ | Dhs. 34.64 | Dhs. 519.60 |
| 25+ | Dhs. 33.89 | Dhs. 847.25 |
| 50+ | Dhs. 32.00 | Dhs. 1,600.00 |
| 100+ | Dhs. 28.24 | Dhs. 2,824.00 |
| N+ | Dhs. 5.65 | Price Inquiry |
Request Quote / Inquiry

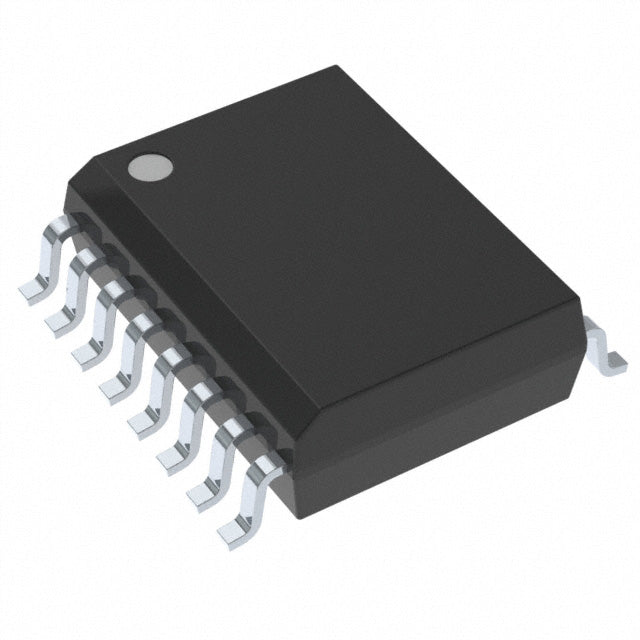

AD7400AYRWZ - 16-Bit Isolated Sigma-Delta Modulator
The AD7400AYRWZ from Analog Devices is a high-performance, second-order sigma-delta (Σ-Δ) modulator that converts an analog input signal into a high-speed, single-bit data stream with galvanic isolation based on Analog Devices' iCoupler® technology. Ideal for isolated voltage and current sensing in motor control, power conversion, and renewable energy applications.
Key Features & Benefits
- 16-bit resolution with 10 MSPS sampling rate for precision measurement
- iCoupler® galvanic isolation ensures safety and noise immunity
- Wide supply voltage range: 3V to 5.5V (VDD1), 4.5V to 5.5V (VDD2)
- Extended temperature range: -40°C to +125°C for industrial environments
- Serial data interface for easy integration with DSPs and microcontrollers
- Surface mount 16-SOIC package for automated assembly
- RoHS compliant for environmental compliance
Typical Applications
- Motor control and drive systems
- Power supply current monitoring
- Solar inverters and renewable energy systems
- Industrial automation and process control
- Isolated data acquisition systems
- Shunt-based current sensing
Why Choose AD7400AYRWZ?
The AD7400AYRWZ delivers industry-leading isolation performance combined with high-resolution analog-to-digital conversion. Its iCoupler® technology provides robust galvanic isolation without the size, cost, and reliability limitations of optocouplers. Perfect for engineers designing next-generation motor drives, power monitoring systems, and industrial control applications requiring precise, isolated measurements.
Full traceability, RoHS compliance, and technical support included with every order.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | iCoupler® |
| Packaging | Tube | |
| Type | Modulator |
| Number of Channels | 1 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 10M |
| Data Interface | Serial |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 3V ~ 5.5V, 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| ROHS |  |
AD7400AYRWZ.pdf
