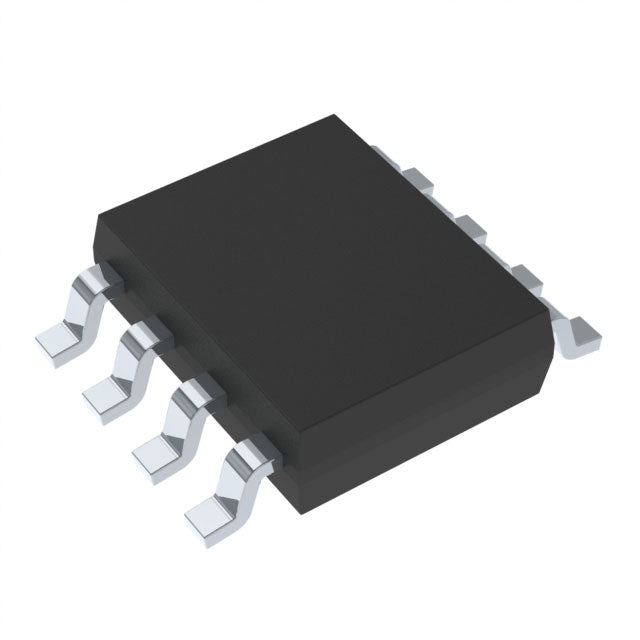

Analog Devices Inc. AD7402-8BRIZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 37.05 | Dhs. 37.05 |
| 15+ | Dhs. 35.88 | Dhs. 538.20 |
| 25+ | Dhs. 35.10 | Dhs. 877.50 |
| 50+ | Dhs. 33.15 | Dhs. 1,657.50 |
| 100+ | Dhs. 29.25 | Dhs. 2,925.00 |
| N+ | Dhs. 5.85 | Price Inquiry |
Request Quote / Inquiry
AD7402-8BRIZ - Isolated Sigma-Delta Modulator
The AD7402-8BRIZ from Analog Devices is a high-precision isolated sigma-delta modulator featuring iCoupler® galvanic isolation technology. This single-channel 16-bit modulator delivers exceptional performance for current and voltage sensing applications in industrial motor control, power monitoring, and renewable energy systems.
Key Features
- 16-bit resolution with 39kHz sampling rate for accurate signal conversion
- iCoupler® isolation technology provides robust galvanic isolation
- Wide supply voltage range: 3V to 5.5V single supply operation
- Industrial temperature range: -40°C to +105°C for harsh environments
- Serial data interface for easy integration with microcontrollers and DSPs
- Surface mount 8-SOIC package for compact PCB designs
- RoHS compliant for environmental compliance
Applications
- Motor control and drive systems
- Power supply monitoring and protection
- Renewable energy inverters
- Industrial automation and process control
- Current sensing in high-voltage systems
Why Choose AD7402-8BRIZ?
The AD7402-8BRIZ combines Analog Devices' proven iCoupler® isolation technology with high-resolution sigma-delta modulation, making it the ideal choice for engineers designing precision measurement systems that require galvanic isolation. Its wide operating temperature range and compact surface-mount package ensure reliable performance in demanding industrial environments.
Full traceability and RoHS/REACH compliance guaranteed. Available in tube packaging for production-scale requirements.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | iCoupler® |
| Packaging | Tube | |
| Type | Modulator |
| Number of Channels | 1 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 39K |
| Data Interface | Serial |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 8-SOIC-IC |
| ROHS |  |
AD7402-8BRIZ.pdf
