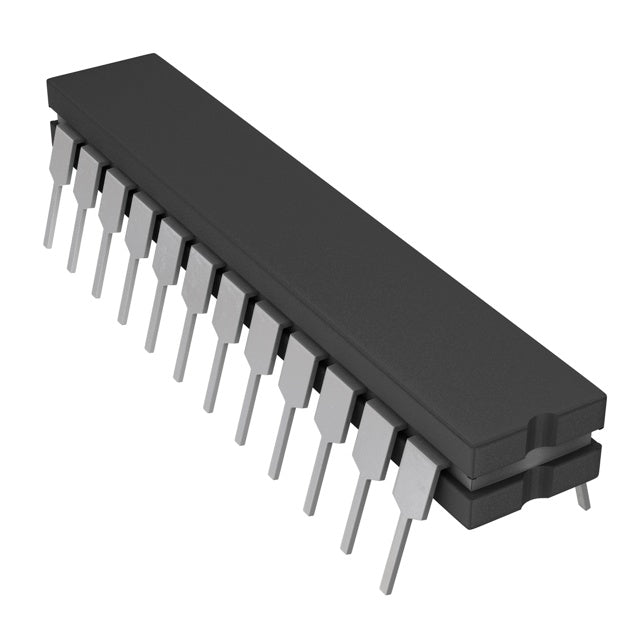

Analog Devices Inc. AD7572BQ12
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $114.72 | $114.72 |
| 15+ | $111.10 | $1,666.50 |
| 25+ | $108.68 | $2,717.00 |
| 50+ | $102.65 | $5,132.50 |
| 100+ | $90.57 | $9,057.00 |
| N+ | $18.11 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | +5V, -15V |
| Voltage - Supply, Digital | +5V, -15V |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 24-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 24-CDIP |
| ROHS |  |
The Analog Devices AD7572BQ12 is a robust, 12-bit analog-to-digital converter designed for precision applications. It features a single input channel and a straightforward parallel interface, simplifying integration into digital systems. The internal reference eliminates the need for external components, reducing design complexity. Housed in a durable 24-pin ceramic CDIP package, it operates reliably across a -25°C to +85°C temperature range. This ADC is well-suited for industrial control, data acquisition, and military applications where proven performance and reliability are paramount.
- Integrated Reference: The internal reference reduces external part count and simplifies PCB layout, saving cost and space.
- Proven Reliability: The ceramic DIP package offers excellent thermal and mechanical stability for demanding environments.
- Simple Integration: The parallel interface allows for direct connection to legacy and modern microcontrollers without complex serial protocols.
- Wide Temperature Range: Rated for -25°C to +85°C, it is suitable for a variety of industrial applications.
Industrial Process Control
The 12-bit resolution and parallel interface make it suitable for precise monitoring and control of analog signals in PLCs and industrial automation systems.
Data Acquisition Systems
Its internal reference simplifies design, making it an excellent choice for portable and embedded data logging applications.
Medical Instrumentation
In patient monitoring devices, the AD7572BQ12 provides reliable conversion of biosignals with sufficient accuracy for diagnostic purposes.
Military and Aerospace
The ceramic CDIP package ensures high reliability and performance in extreme environments, suitable for avionics and defense systems.
Test and Measurement
As a legacy, proven ADC, it is often used in precision voltmeters and calibration equipment where stability is key.
Robotics and Motion Control
It can digitize position and current feedback signals, enabling precise and responsive control loops.
- Q: What is the resolution of the AD7572BQ12?
- A: It is a 12-bit analog-to-digital converter.
- Q: How many channels does it have?
- A: This ADC has a single input channel.
- Q: What is the digital interface?
- A: It features a parallel digital output interface for easy connection to microprocessors.
- Q: What is the architecture of this ADC?
- A: It uses a standard ADC architecture with an internal reference.
- Q: What is the operating temperature range?
- A: It is specified for operation from -25°C to +85°C.
- Q: What package is available?
- A: The device is offered in a 24-pin CDIP (Ceramic Dual In-line Package).
