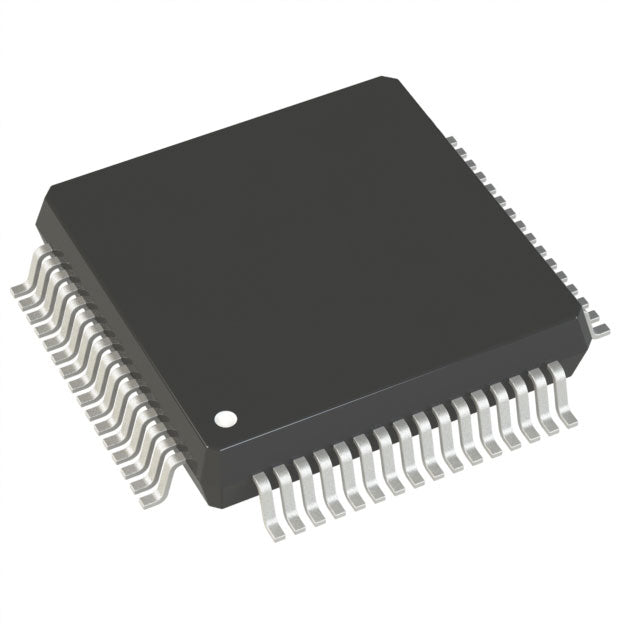

Analog Devices Inc. AD7606BBSTZ-RL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 147.03 | Dhs. 147.03 |
| 15+ | Dhs. 142.41 | Dhs. 2,136.15 |
| 25+ | Dhs. 139.31 | Dhs. 3,482.75 |
| 50+ | Dhs. 131.57 | Dhs. 6,578.50 |
| 100+ | Dhs. 116.09 | Dhs. 11,609.00 |
| N+ | Dhs. 23.22 | Price Inquiry |
Request Quote / Inquiry
AD7606BBSTZ-RL - High-Performance 16-Bit Data Acquisition System
The AD7606BBSTZ-RL from Analog Devices is a precision 8-channel, 16-bit data acquisition system (DAS) designed for demanding industrial, medical, and instrumentation applications. Featuring simultaneous sampling at up to 800kSPS per channel, this integrated solution combines high-resolution analog-to-digital conversion with flexible parallel and serial interfaces, making it ideal for multi-channel signal monitoring and control systems.
Key Features & Benefits:
- 8 Simultaneous Channels: Capture multiple analog signals with precise timing correlation
- 16-Bit Resolution: Achieve exceptional measurement accuracy for critical applications
- 800kSPS Sampling Rate: Fast data acquisition for dynamic signal analysis
- Bipolar Input Range: Flexible signal conditioning for both positive and negative voltages
- Dual Interface Options: Parallel and serial data interfaces for versatile system integration
- Wide Operating Range: -40°C to 125°C for harsh industrial environments
- RoHS Compliant: Environmentally friendly, lead-free manufacturing
- Surface Mount 64-LQFP: Compact 10x10mm package for space-constrained designs
Applications:
Perfect for industrial automation, medical instrumentation, power monitoring, motor control, data loggers, and multi-channel sensor acquisition systems requiring high precision and reliability.
Technical Specifications:
Authorized Distributor: We provide genuine Analog Devices components with full traceability, technical support, and global shipping. Available in Cut Tape (CT) and Tape & Reel (TR) packaging options for prototype and production requirements.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 800k |
| Data Interface | Parallel, Serial |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 1.71V ~ 4.75V, 3.6V ~ 5.25V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10x10) |
| ROHS |  |
AD7606BBSTZ-RL.pdf
