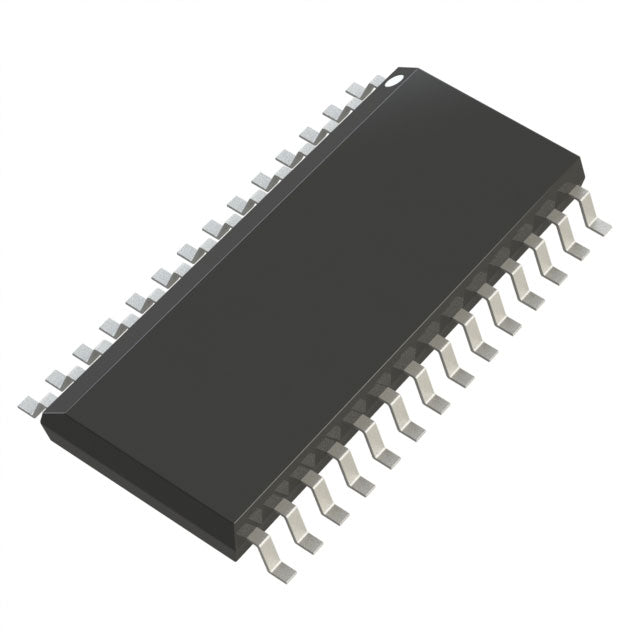

Analog Devices Inc. AD774BBRZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $105.38 | $105.38 |
| 15+ | $102.06 | $1,530.90 |
| 25+ | $99.84 | $2,496.00 |
| 50+ | $94.29 | $4,714.50 |
| 100+ | $83.20 | $8,320.00 |
| N+ | $16.64 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 2 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| ROHS |  |
The AD774BBRZ is a 12-bit, dual-channel analog-to-digital converter from Analog Devices. It features a parallel interface for high-speed data transfer and includes an internal reference. Designed for industrial applications, it operates over a wide temperature range of -40°C to +85°C. The 28-SOIC package makes it suitable for a variety of PCB designs. This ADC is ideal for multi-channel data acquisition, industrial automation, and motor control systems where accuracy and reliability are paramount.
- Dual-Channel Input: Enables simultaneous sampling of two signals, reducing system complexity and cost.
- Industrial Temperature Range: Guaranteed operation from -40°C to +85°C for harsh environments.
- Fast Parallel Interface: Allows for high-speed data transfer to microprocessors and DSPs.
- Integrated Reference: Minimizes external components and simplifies the design process.
- Proven Architecture: Based on a reliable ADC architecture, ensuring consistent performance.
Multi-Channel Data Logging
The AD774BBRZ's dual-channel configuration allows simultaneous sampling of two different analog signals, making it ideal for data logging applications in industrial environments.
Industrial Automation
With its parallel interface and industrial temperature range, this ADC is well-suited for programmable logic controllers (PLCs) and other automation equipment requiring fast, reliable conversion.
Test and Measurement Equipment
The 12-bit resolution and parallel output enable precise digitization in benchtop multimeters and data acquisition cards for laboratory use.
Motor Control Systems
In motor drives, the ADC can digitize current and voltage feedback signals from two sensors, enabling precise control loops for speed and torque regulation.
Audio Processing
While not a high-end audio ADC, its dual channels and parallel interface can be used in professional audio mixing consoles for control voltage monitoring and system diagnostics.
Robotics
Robotic systems can use the AD774BBRZ to read joint position sensors and load cells simultaneously, providing essential feedback for motion control and safety systems.
- Q: What is the AD774BBRZ?
- A: The AD774BBRZ is a 12-bit analog-to-digital converter (ADC) with a parallel interface.
- Q: What is the resolution of the AD774BBRZ?
- A: It provides 12-bit resolution, offering 4096 distinct digital output codes.
- Q: How many channels does the AD774BBRZ have?
- A: It features 2 input channels for multiplexed signal conversion.
- Q: What interface does the AD774BBRZ use?
- A: It uses a parallel digital interface for high-speed data transfer.
- Q: What is the operating temperature range?
- A: It operates over the industrial temperature range of -40°C to +85°C.
- Q: What package is the AD774BBRZ available in?
- A: It comes in a 28-SOIC (0.295", 7.50mm Width) package.
