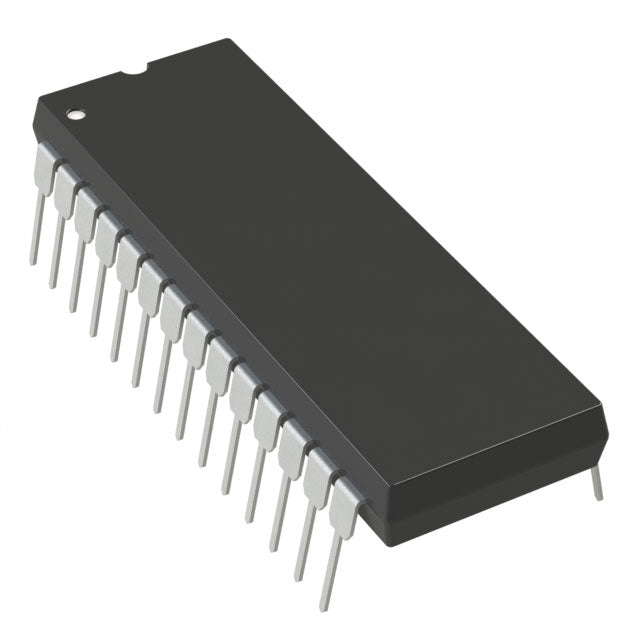

Analog Devices Inc. AD774BJNZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $69.52 | $69.52 |
| 15+ | $67.33 | $1,009.95 |
| 25+ | $65.86 | $1,646.50 |
| 50+ | $62.20 | $3,110.00 |
| 100+ | $54.89 | $5,489.00 |
| N+ | $10.98 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 2 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-PDIP |
| ROHS |  |
The AD774BJNZ is a 12-bit, dual-channel Analog-to-Digital Converter (ADC) from Analog Devices. It features a parallel interface and an internal reference, simplifying system design. The device is designed for multi-channel data acquisition, industrial automation, and instrumentation applications. It operates over a wide temperature range of -40°C to 85°C, ensuring reliable performance in demanding environments.
- Dual Channels: Allows simultaneous conversion of two input signals.
- 12-Bit Resolution: Provides accurate digital representation of analog signals.
- Internal Reference: Reduces external component count and simplifies design.
- Wide Temperature Range: Operates from -40°C to 85°C for industrial applications.
Multi-Channel Data Acquisition
The 2-channel configuration allows for simultaneous sampling of two different signals, making it ideal for multi-channel data acquisition systems.
Industrial Automation
With a temperature range of -40°C to 85°C, it is suitable for industrial automation and control systems.
Process Control
Used in process control applications where multiple analog signals need to be monitored and converted.
Instrumentation
Ideal for laboratory instruments requiring dual-channel analog-to-digital conversion.
Environmental Monitoring
Can be used in environmental monitoring systems to digitize signals from multiple sensors.
Audio Processing
The dual channels make it suitable for stereo audio digitization in professional audio equipment.
- Q: What is the resolution of the AD774BJNZ?
- A: The AD774BJNZ is a 12-bit Analog-to-Digital Converter (ADC).
- Q: What is the sampling rate?
- A: The sampling rate is not specified in the provided technical data.
- Q: How many channels does it have?
- A: This ADC has 2 input channels.
- Q: What interface does it use?
- A: It uses a Parallel interface.
- Q: What is the architecture?
- A: It uses an ADC architecture.
- Q: What is the package type?
- A: It comes in a 28-DIP (0.600", 15.24mm) package.
