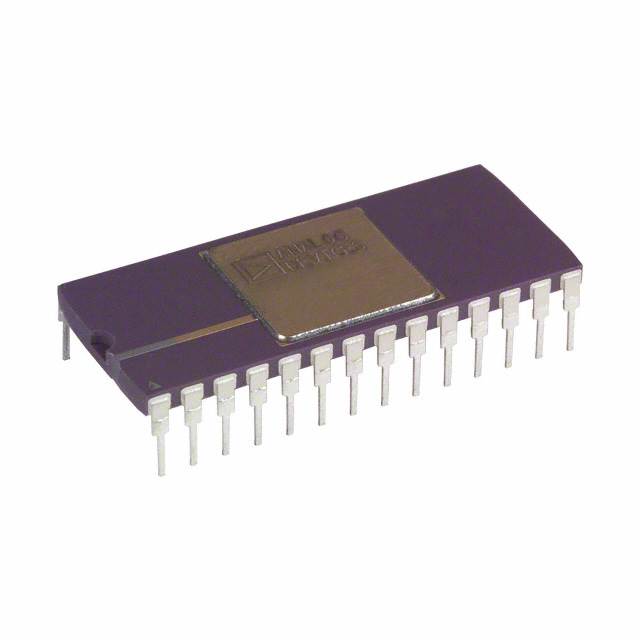

Analog Devices Inc. AD774BTD/883B
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $379.35 | $379.35 |
| 15+ | $367.37 | $5,510.55 |
| 25+ | $359.39 | $8,984.75 |
| 50+ | $339.42 | $16,971.00 |
| 100+ | $299.49 | $29,949.00 |
| N+ | $59.90 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 2 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
| ROHS |  |
The AD774BTD/883B is a 12-bit analog-to-digital converter featuring two input channels and a parallel interface. Designed by Analog Devices, this ADC includes an internal reference, simplifying circuit design and reducing external component count. It operates over the full military temperature range of -55°C to 125°C and is packaged in a 28-CDIP, making it suitable for high-reliability applications in aerospace, defense, and industrial automation where multi-channel precision conversion is required.
- Dual Channels: Two input channels allow simultaneous sampling of multiple signals, increasing system throughput.
- Internal Reference: Eliminates the need for external reference circuitry, saving board space and reducing design complexity.
- Military Temperature Range: Guaranteed operation from -55°C to 125°C for extreme environments.
- Parallel Interface: Provides high-speed data transfer to host processors for real-time applications.
Multi-Sensor Data Acquisition
With 2 input channels and 12-bit resolution, this ADC can simultaneously digitize two analog signals, ideal for differential measurements or dual-sensor monitoring in industrial systems.
Military Communication Systems
The wide temperature range and internal reference ensure stable performance in defense communication equipment operating in harsh environments.
Precision Instrumentation
The 12-bit accuracy and parallel output make it suitable for laboratory instruments requiring reliable and fast data conversion.
Automotive Sensor Interfaces
Although rated for military temperatures, its dual-channel capability can be adapted for automotive testing rigs that need multiple sensor readings.
Aerospace Telemetry
The robust 28-CDIP package and high-temperature tolerance support aerospace telemetry systems that demand long-term reliability.
- Q: What is the resolution of the AD774BTD/883B?
- A: It is a 12-bit analog-to-digital converter.
- Q: How many channels does this ADC have?
- A: It has 2 input channels.
- Q: What interface does the AD774BTD/883B use?
- A: It uses a parallel interface.
- Q: What is the reference type?
- A: It has an internal reference.
- Q: What is the operating temperature range?
- A: It operates from -55°C to 125°C.
- Q: What package is available?
- A: It is available in a 28-CDIP package.
