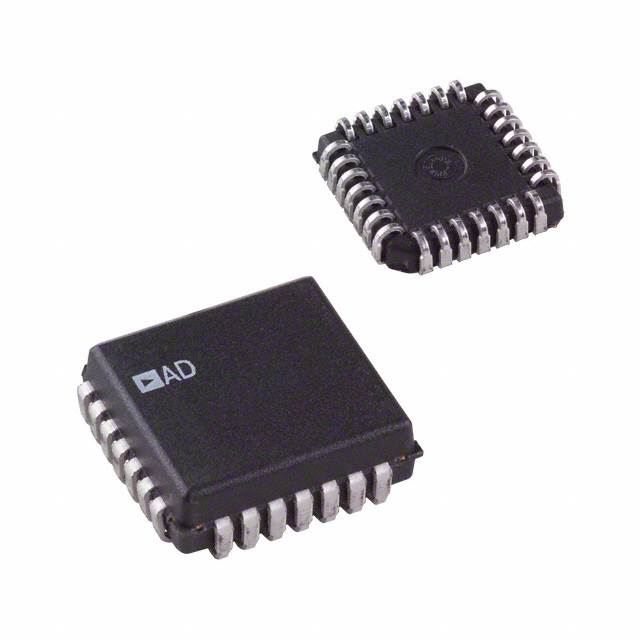

Analog Devices Inc. AD7828LPZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $171.65 | $171.65 |
| 15+ | $39.48 | $592.20 |
| 25+ | $38.62 | $965.50 |
| 50+ | $36.47 | $1,823.50 |
| 100+ | $32.18 | $3,218.00 |
| N+ | $6.44 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 50k |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Flash |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| ROHS |  |
The AD7828LPZ is an 8-bit, 8-channel ADC from Analog Devices, featuring a multiplexed sample-and-hold architecture. With a sampling rate of 50 kSPS and a parallel interface, it is designed for multi-sensor data acquisition in commercial applications. The 28-LCC package and 0°C to 70°C temperature range make it a practical choice for cost-effective embedded systems.
- 8 Multiplexed Inputs: Enables monitoring of multiple analog signals with a single ADC, reducing system cost and board space.
- Simple Parallel Interface: Facilitates easy integration with microcontrollers and digital systems.
- 8-Bit Resolution: Provides adequate precision for many control and monitoring applications.
- Compact LCC Package: The 28-LCC (J-Lead) package is suitable for space-constrained designs.
Multi-Sensor Monitoring Systems
The AD7828LPZ's 8 input channels allow a single ADC to monitor multiple sensors, such as temperature, pressure, and humidity, in industrial and building automation systems, reducing component count and cost.
Battery Management Systems
In battery monitoring, the ADC can sequentially measure cell voltages across multiple channels, enabling accurate state-of-charge estimation in electric vehicles and portable devices.
Data Loggers
For environmental data logging, the 8-channel capability and 50 kSPS sampling rate allow periodic sampling of various analog signals, storing data for long-term analysis.
Industrial Process Control
The ADC's multiplexed inputs enable monitoring of multiple process variables, such as flow and level, in a single controller, simplifying wiring and reducing system complexity.
Consumer Electronics
In appliances like washing machines, the ADC can read multiple sensor inputs (temperature, water level, motor speed) with a single chip, lowering manufacturing costs.
Educational Kits
Due to its simplicity and parallel interface, the AD7828LPZ is ideal for educational microcontroller projects, teaching students about analog-to-digital conversion and sensor interfacing.
- Q: What is the AD7828LPZ?
- A: It is an 8-bit, 50 kSPS analog-to-digital converter (ADC) with 8 input channels and a multiplexed sample-and-hold (MUX-S/H) architecture.
- Q: What is the resolution?
- A: It provides 8-bit resolution, suitable for cost-sensitive applications with moderate accuracy needs.
- Q: What is the sampling rate?
- A: The maximum sampling rate is 50 kSPS, adequate for low-speed sensor monitoring.
- Q: How many channels does it have?
- A: It features 8 multiplexed input channels, allowing multiple analog signals to be digitized sequentially.
- Q: What interface does it use?
- A: It uses a parallel interface for easy connection to microprocessors.
- Q: What is the temperature range?
- A: It operates from 0°C to 70°C, suitable for commercial applications.
