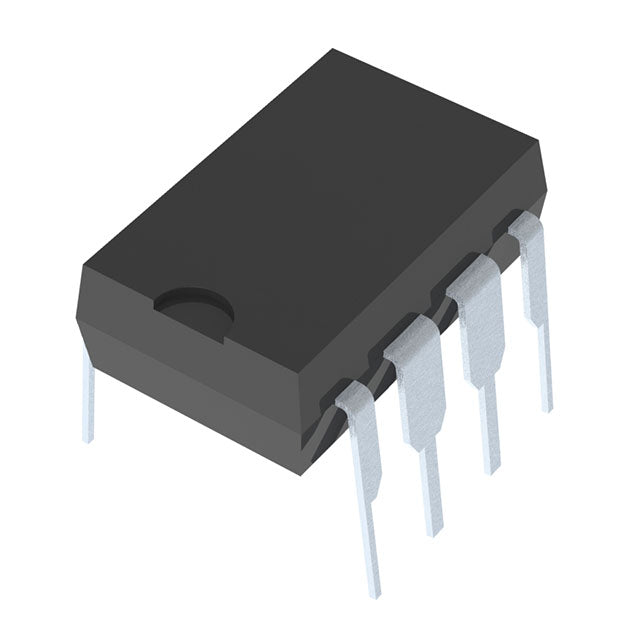

Analog Devices Inc. AD7895ANZ-10
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.32 | $18.32 |
| 15+ | $17.74 | $266.10 |
| 25+ | $17.35 | $433.75 |
| 50+ | $16.39 | $819.50 |
| 100+ | $14.46 | $1,446.00 |
| N+ | $2.89 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 192k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| ROHS |  |
The Analog Devices AD7895ANZ-10 is a 12-bit analog-to-digital converter with a maximum sampling rate of 192 kSPS. It features a single input channel and a sample-and-hold architecture. The device uses an SPI-compatible serial interface for easy integration with digital systems. It operates over a wide temperature range of -40°C to +85°C and is available in a robust 8-DIP package, making it suitable for industrial and automotive applications.
- Simple SPI Interface: The serial interface reduces pin count and simplifies PCB layout.
- Wide Temperature Range: Operates reliably from -40°C to +85°C, suitable for harsh environments.
- Low Power: Designed for low power consumption, ideal for battery-powered applications.
- Through-Hole Package: The 8-DIP package is easy to handle and solder, ideal for prototyping and legacy designs.
Industrial Control Systems
The AD7895ANZ-10's 12-bit resolution and 192 kSPS sampling rate make it suitable for industrial control and monitoring applications.
Data Acquisition
Its SPI interface simplifies connection to microcontrollers in data acquisition systems, providing accurate digitization of analog signals.
Battery-Powered Devices
The low power consumption and 8-DIP package make it ideal for portable, battery-powered instruments.
Sensor Interfaces
It can be used to digitize signals from various sensors, including temperature, pressure, and position sensors.
Automotive Electronics
With an operating range of -40°C to +85°C, it is suitable for automotive sensor and control applications.
Test and Measurement
Its speed and accuracy make it useful for general-purpose test and measurement equipment.
- Q: What is the AD7895ANZ-10?
- A: It is a 12-bit sampling analog-to-digital converter (ADC) from Analog Devices with a serial interface.
- Q: What is the sampling rate?
- A: The maximum sampling rate is 192 kSPS (192k samples per second).
- Q: How many channels does it have?
- A: It has a single (1) input channel.
- Q: What interface does it use?
- A: It uses an SPI-compatible serial interface.
- Q: What is the architecture?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type?
- A: It is available in an 8-DIP package.
AD7895ANZ-10.pdf
- Q: What is the AD7895ANZ-10?
- A: It is a 12-bit sampling analog-to-digital converter (ADC) from Analog Devices with a serial interface.
- Q: What is the sampling rate?
- A: The maximum sampling rate is 192 kSPS (192k samples per second).
- Q: How many channels does it have?
- A: It has a single (1) input channel.
- Q: What interface does it use?
- A: It uses an SPI-compatible serial interface.
- Q: What is the architecture?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type?
- A: It is available in an 8-DIP package.
