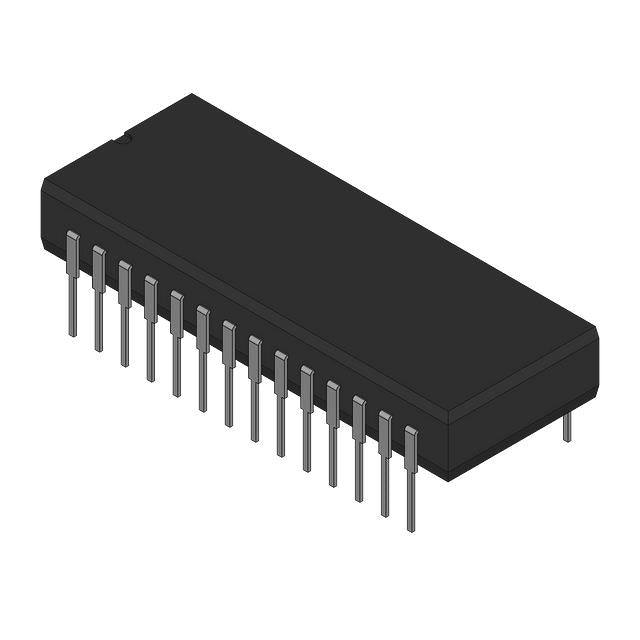

Analog Devices Inc. AD9002TD
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $360.20 | $360.20 |
| 15+ | $348.83 | $5,232.45 |
| 25+ | $341.24 | $8,531.00 |
| 50+ | $322.29 | $16,114.50 |
| 100+ | $284.37 | $28,437.00 |
| N+ | $56.87 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | AD9002 |
| Packaging | Bulk | |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 150M |
| Number of Inputs | 8 |
| Input Type | - |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | - |
| Reference Type | External |
| Voltage - Supply, Analog | -5.46V ~ -4.94V |
| Voltage - Supply, Digital | -5.46V ~ -4.94V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
The AD9002TD from Analog Devices is a high-speed 8-bit analog-to-digital converter designed for demanding applications requiring fast and accurate signal conversion. With a sampling rate of 150 MSPS and 8 parallel input channels, it excels in multi-channel data acquisition, radar processing, and medical imaging. Its external reference architecture provides flexibility in scaling input ranges, while the military-grade temperature range (-55°C to 125°C) and robust 28-CDIP package ensure reliable operation in harsh environments.
- High-Speed Performance: 150 MSPS sampling rate enables real-time digitization of fast signals, critical for radar and communication systems.
- Multi-Channel Integration: 8 channels reduce board space and system cost by eliminating multiple single-channel ADCs.
- Military-Grade Reliability: -55°C to 125°C operating range and hermetic CDIP package ensure operation in extreme environments.
- Flexible Reference Design: External reference allows users to optimize input voltage range for specific sensor outputs.
High-Speed Data Acquisition
The AD9002TD's 150 MSPS sampling rate and 8-bit resolution make it ideal for digitizing fast transient signals in oscilloscopes and high-speed data acquisition systems.
Radar and Communication Systems
With 8 parallel channels and a wide -55°C to 125°C temperature range, this ADC is suited for military-grade radar signal processing and wideband communication receivers.
Medical Imaging Equipment
The high sampling rate enables precise capture of ultrasound or optical coherence tomography signals, supporting real-time image reconstruction in medical diagnostics.
Industrial Automation Control
Multiple channels allow simultaneous monitoring of several analog sensors in industrial process control, improving system response time and accuracy.
Defense and Aerospace Instrumentation
The rugged CDIP package and extended temperature range ensure reliable performance in avionics and satellite telemetry systems where environmental extremes are common.
Scientific Research Instruments
Researchers can use the AD9002TD for particle physics experiments or spectroscopy where fast, parallel sampling of multiple detector outputs is required.
- Q: What is the resolution of the AD9002TD ADC?
- A: The AD9002TD is an 8-bit analog-to-digital converter.
- Q: What is the maximum sampling rate?
- A: It supports a high-speed sampling rate of 150 MSPS (150M SPS).
- Q: How many input channels does it have?
- A: This ADC features 8 input channels.
- Q: What digital interface does it use?
- A: It uses a Parallel interface for data output.
- Q: What is the operating temperature range?
- A: It is rated for military temperature range from -55°C to 125°C.
- Q: What package is the AD9002TD available in?
- A: It comes in a 28-CDIP (0.600", 15.24mm) ceramic dual-in-line package.
